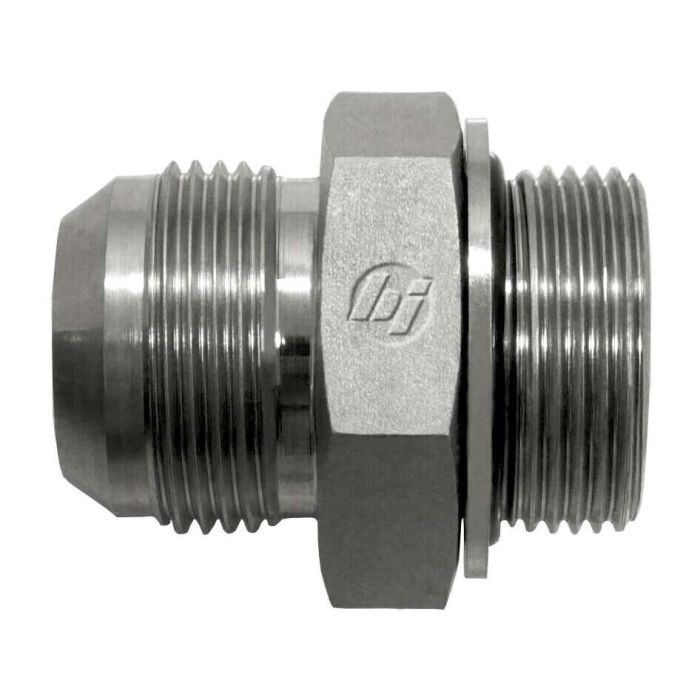

06MJ-18MM PORT METRIC W/RETAINING RING

Ask A Question

Description & Features

This straight steel fitting, designated 06MJ-18MM PORT METRIC W/RETAINING RING, is part of the 7001-ORR Series from Brennan Industries. It features a male JIC SAE 37 degree flare on one end (9/16-18 thread, SAE J514 specification) and a male metric O-ring with retaining ring on the other (M18X1.5 thread, FOR ISO 9974 PORT specification).

The fitting uses an NBR O-ring seal material. The thread drill sizes are 7.0 mm and 9.0 mm. Its dimensions occupy a cubic inch space of 1.248.

SKU: 7001-06-18

Supplier Part Number (MPN): 7001-06-18

Specifications

Connection Size 1
3/8 in
Connection Size 2
18 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male Metric O-ring
Dimension Standards
SAE J514
Dimensions
1.4 in L
Finish
Zinc Trivalent
Fitting Type
Adapter
Hex Size
0.94 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
3600 psi
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
7001-ORR Series
Thread Size
9/16-18 x M18x1.5
Thread Specification B2
For ISO 9974 Port

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Lee B on Apr 5, 2026, 8:00 AM
What's the thread drill size on each end of this fitting?
Answer by: Customer Support on Apr 7, 2026, 7:46 AM
You've got a 7.0 mm drill size on one end and 9.0 mm on the other.
