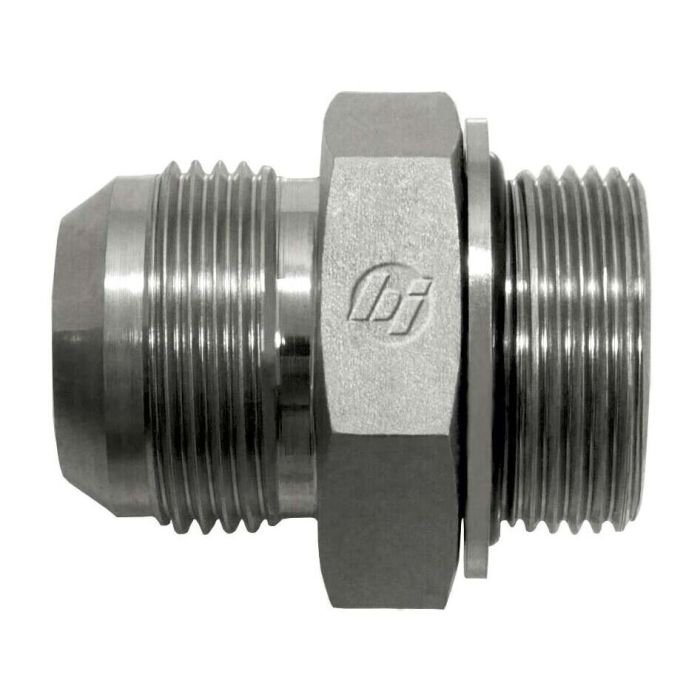

08MJ-22MM PORT METRIC W/RETAINING RING

Description & Features

Constructed from high-quality straight steel, this metric port fitting with an O-ring and retaining ring is designed for robust hydraulic applications. The 08MJ-22MM PORT METRIC W/RETAINING RING features a male JIC SAE 37-degree flare thread on one end, compliant with SAE J514 standards, and a male metric O-ring and retaining ring thread on the other, conforming to ISO 9974 port specifications. This ensures a reliable, leak-proof connection in demanding industrial environments.

The product's dimensions include a 3/4-16 thread size for the SAE end and an M22X1.5 thread size for the metric end. With an NBR O-ring seal, it provides excellent resistance to oil and other common hydraulic fluids, enhancing longevity and performance. This fitting is part of the Brennan Industries 7001-ORR series, known for precision and durability.

SKU: 7001-08-22

Supplier Part Number (MPN): 7001-08-22

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 7001-08-22	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Neil K on May 28, 2025, 2:04 PM

Will this here fitting hold up to hydraulic oil alright, or do I need to get a special kind?

Answer by: Customer Support on May 30, 2025, 12:40 PM

The NBR O-ring seal in this fitting offers excellent resistance to oil and other common hydraulic fluids, so it should work well for your hydraulic oil application.
