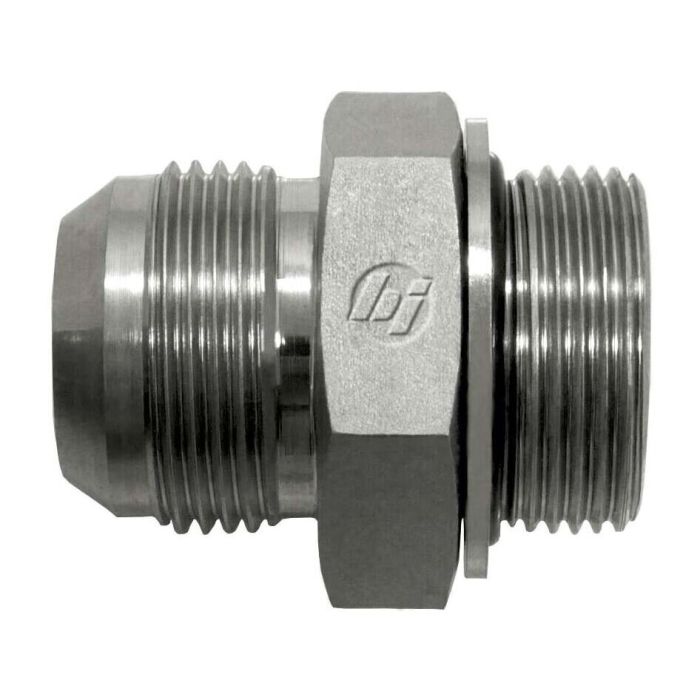

main product photo

10MJ-20MM PORT METRIC W/RETAINING RING

Ask A Question

Description & Features

This straight steel fitting is a 10MJ-20MM PORT METRIC W/RETAINING RING. The male JIC SAE 37 degree flare end has a 7/8-14 thread size conforming to SAE J514 standards.

The male metric O-ring and retaining ring end features a M20X1.5 thread made for ISO 9974 ports. The O-ring seal is constructed of NBR material. Thread drill B1 and B2 measure 11.0 mm.

SKU: 7001-10-20

Supplier Part Number (MPN): 7001-10-20

Specifications

Connection Size 1
5/8 in
Connection Size 2
20 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male Metric O-ring
Cubic Inch Space L x W x H Dimensions
1.824 cu-in
Dimension Standards
SAE J514
Dimensions
40.3 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
3600 psi
O-ring Seal Material
NBR
Operating Temperature
-40 to 250 deg F
Series
7001-ORR Series
Thread B1 Drill Dimensions
11 mm
Thread B2 Drill Dimensions
11 mm
Thread Size
7/8-14 x M20x1.5

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Gene P on Dec 13, 2025, 4:50 PM
Will this fitting work with a standard metric port?
Answer by: Customer Support on Dec 15, 2025, 6:12 AM
this straight steel fitting has a male metric O-ring and retaining ring end designed for ISO 9974 ports.
