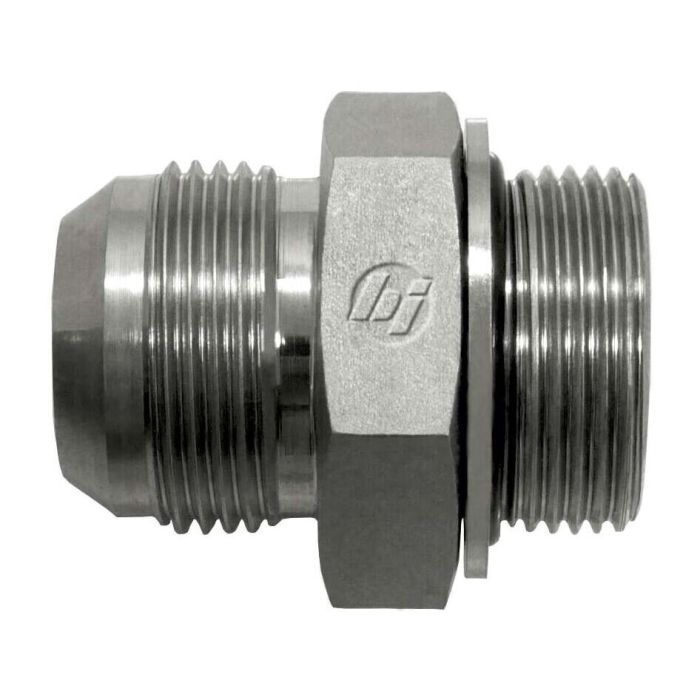

main product photo

10MJ-22MM PORT METRIC W/RETAINING RING

Ask A Question

Description & Features

The 10MJ-22MM PORT METRIC W/RETAINING RING is a robust hydraulic fitting designed for industrial applications requiring secure connections. This fitting features a durable straight steel construction, ensuring longevity and reliability in demanding environments. Its design incorporates a male JIC SAE 37-degree flare thread (7/8-14) on one end and a male metric O-ring with retaining ring (M22X1.5) on the other, making it suitable for diverse hydraulic systems.

Manufactured by Brennan Industries, this fitting adheres to SAE J514 and ISO 9974 port thread specifications, guaranteeing compatibility with industry standards. The NBR O-ring seal enhances the fitting's leak-resistant properties, making it ideal for maintaining system integrity under pressure. With a compact size, it efficiently utilizes space, measuring 1.868 cubic inches. This fitting is a reliable choice for professionals seeking durable and compatible components for their hydraulic configurations.

SKU: 7001-10-22

Supplier Part Number (MPN): 7001-10-22

Specifications

Connection Size 1
5/8 in
Connection Size 2
22 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male Metric O-ring
Dimension Standards
SAE J514
Dimensions
43.3 mm L
Finish
Zinc Trivalent
Fitting Type
Adapter
Hex Size
1.06 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
3600 psi
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
7001-ORR Series
Thread Size
7/8-14 x M22x1.5
Thread Specification B2
For ISO 9974 Port

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Dustin B on Jan 20, 2026, 9:22 PM
So this fitting has a metric O-ring on one side and a JIC flare on the other, right? Just making sure I'm seeing that correctly.
Answer by: Customer Support on Jan 22, 2026, 6:17 AM
That's correct. It features a male JIC SAE 37-degree flare thread (7/8-14) on one end and a male metric O-ring with retaining ring (M22X1.5) on the other.
