BRENNAN 12MJ-22MM PORT METRIC

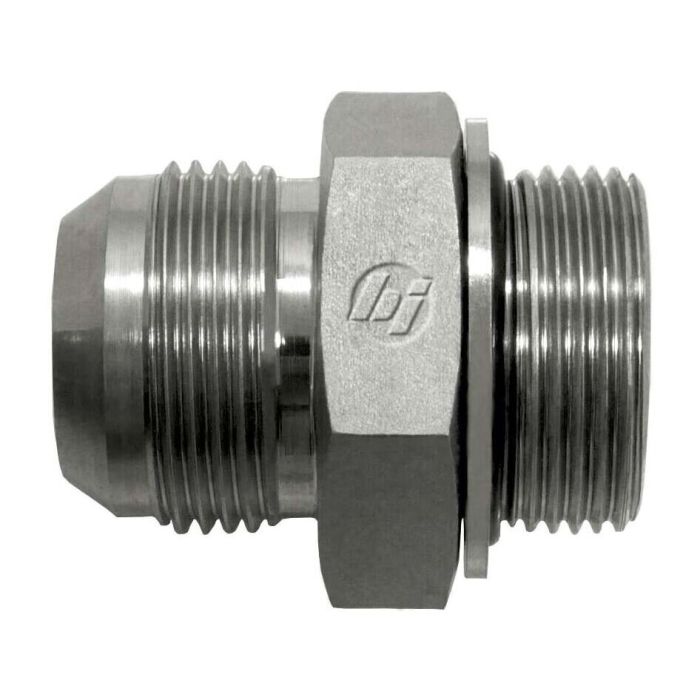

A straight steel adapter connecting a 1-1/16-12 Male JIC SAE 37-degree flare on one end to an M22x1.5 Male Metric O-Ring and retaining ring port on the other, the Brennan 12MJ-22MM Port Metric (Series 7001-ORR) is built for reliable cross-standard hydraulic connections. The JIC end conforms to SAE J514, while the metric port end meets the ISO 9974 standard, making this fitting well suited for systems that combine SAE and metric components.

Constructed from straight steel with an NBR O-ring seal, this fitting provides a dependable seal at the metric port interface. Thread drill dimensions of 15.5 mm at the JIC end and 14.0 mm at the metric end are consistent with standard machining requirements for both connection types. Compact by design, it fits where space is limited without sacrificing connection integrity.

California residents: This product is subject to Prop 65 warnings.

SKU: 7001-12-22

Supplier Part Number (MPN): 7001-12-22
