12MJ-27MM PORT METRIC W/RETAINING RING

Description & Features

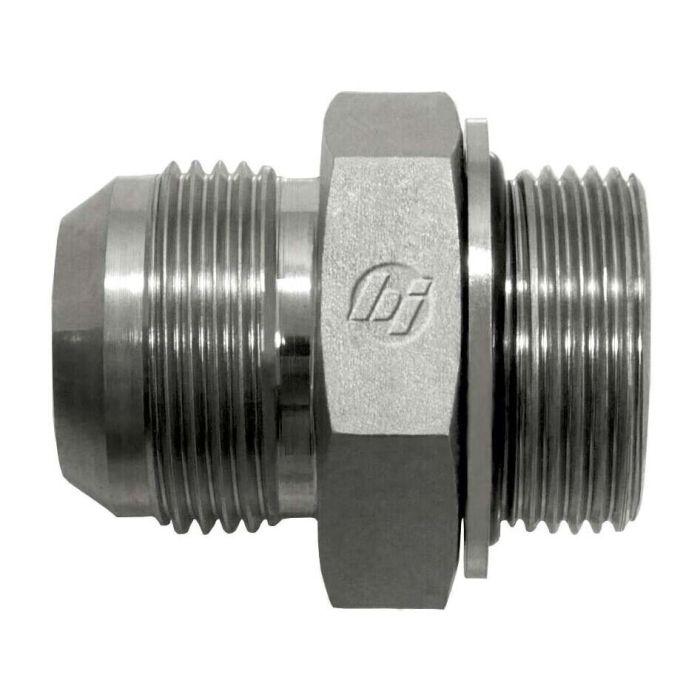

This straight steel fitting, designated as 12MJ-27MM PORT METRIC W/RETAINING RING, features a male JIC SAE 37-degree flare thread on one end and a male metric O-ring and retaining ring on the other, adhering to ISO 9974 port specifications.

The fitting includes an NBR O-ring seal material and is part of the 7001-ORR series. The thread sizes are 1-1/16-12 and M27X2.0, with thread drill sizes of 15.5 mm for both threads.

SKU: 7001-12-27

Supplier Part Number (MPN): 7001-12-27

Alternate Part Numbers: FMC102-2092

Specifications

Connection Size 1 3/4 in	Connection Type Male JIC, Male Metric	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male Metric O-ring	Cubic Inch Space L x W x H Dimensions 3.187 cu-in	Dimension Standards SAE J514	Dimensions 47.9 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 32 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 3000 psi	O-ring Seal Material NBR	Operating Temperature -40 to 250 deg F	Series 7001-ORR Series	Thread B1 Drill Dimensions 15.5 mm	Thread B2 Drill Dimensions 15.5 mm	Thread Size 1-1/16-12, M27x2

Product Questions & Answers (1)

Question by: Ralph G on May 16, 2025, 6:02 AM

Will this fitting work with standard metric hydraulic systems?

Answer by: Customer Support on May 18, 2025, 6:53 AM

Yes, this fitting is designed to connect to hydraulic systems using ISO 9974 ports with a M27X2.0 male metric O-ring and retaining ring.
