7002-04-06

Description & Features

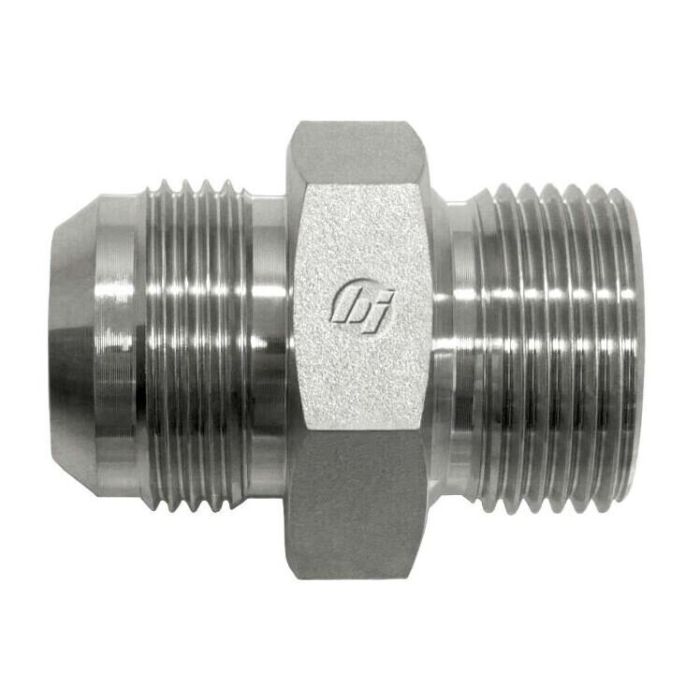

This straight steel fitting, part number 7002-04-06, features a male JIC SAE 37-degree flare on one end and a male BSPP with a 60-degree seat on the other. The 7002-04-06 is part of the Brennan 7002 series.

The thread sizes are 7/16-20 (SAE J514 specification) and 3/8-19 (60-degree seat swivel connection specification), with thread drill sizes of 4.0 mm and 9.0 mm, respectively. This fitting is suitable for various industrial applications.

SKU: 7002-04-06

Supplier Part Number (MPN): 7002-04-06

Specifications

Connection Size 1 1/4 in	Connection Size 2 3/8 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male BSPP 60 deg Cone Seat	Cubic Inch Space L x W x H Dimensions 1.049 cu-in	Dimension Standards SAE J514	Dimensions 34 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 22 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 5100 psi	Series 7002 Series	Thread B1 Drill Dimensions 4 mm	Thread B2 Drill Dimensions 9 mm	Thread Size 3/8-19 x 7/16-20

Product Questions & Answers (1)

Question by: Roger H on Apr 16, 2025, 7:16 AM

Will this fitting work for my hydraulic setup? I need a JIC to BSPP adapter.

Answer by: Customer Support on Apr 17, 2025, 10:24 AM

It sounds like it could be a good fit. This straight steel fitting has a male JIC SAE 37-degree flare on one end and a male BSPP with a 60-degree seat on the other.
