06MJ-04MBSPP STRAIGHT

Description & Features

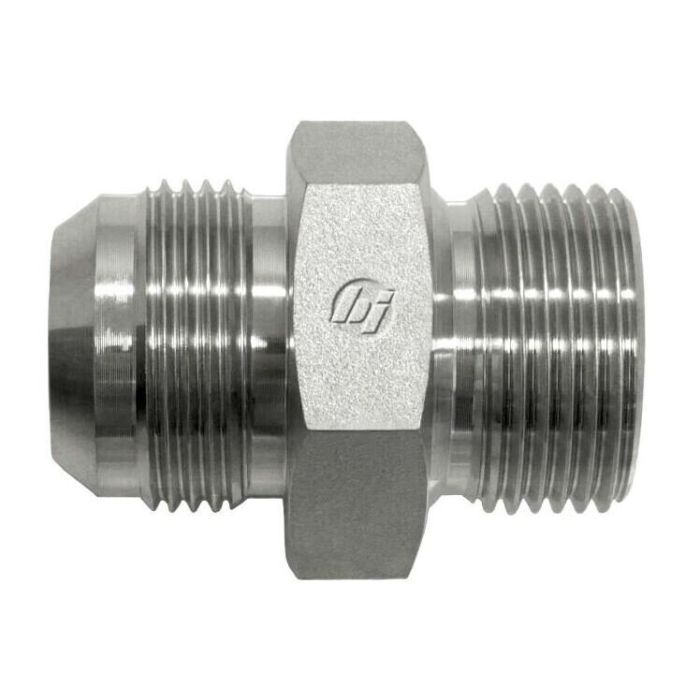

This straight fitting, part number 06MJ-04MBSPP STRAIGHT, is manufactured from steel and belongs to the 7002 series.

It features a 9/16-18 thread size B1, conforming to SAE J514 standards, and a 1/4-19 thread size B2. The B1 thread is a male JIC SAE 37-degree flare type, while the B2 thread is a male BSPP with a 60-degree seat swivel connection.

SKU: 7002-06-04

Supplier Part Number (MPN): 7002-06-04

Alternate Part Numbers: A2063-4-6S

Specifications

Connection Size 1 3/8 in	Connection Size 2 1/4 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male BSPP 60 deg Cone Seat	Cubic Inch Space L x W x H Dimensions 0.716 cu-in	Dimension Standards SAE J514	Dimensions 32.1 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 19 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 5100 psi	Series 7002 Series	Thread B1 Drill Dimensions 6 mm	Thread B2 Drill Dimensions 6.3 mm	Thread Size 9/16-18 x 1/4-19

Product Questions & Answers (1)

Question by: Neil R on Dec 22, 2025, 3:18 PM

So, this here's got two different thread sizes, right? Just want to make sure I'm gettin' the right thing for my setup.

Answer by: Customer Support on Dec 24, 2025, 11:03 AM

That's right. This fitting features a 9/16-18 thread (B1) and a 1/4-19 thread (B2). The B1 thread is a male JIC SAE 37-degree flare, while the B2 thread is a male BSPP with a 60-degree seat swivel connection.
