08MJ-06MBSPP Straight

Description & Features

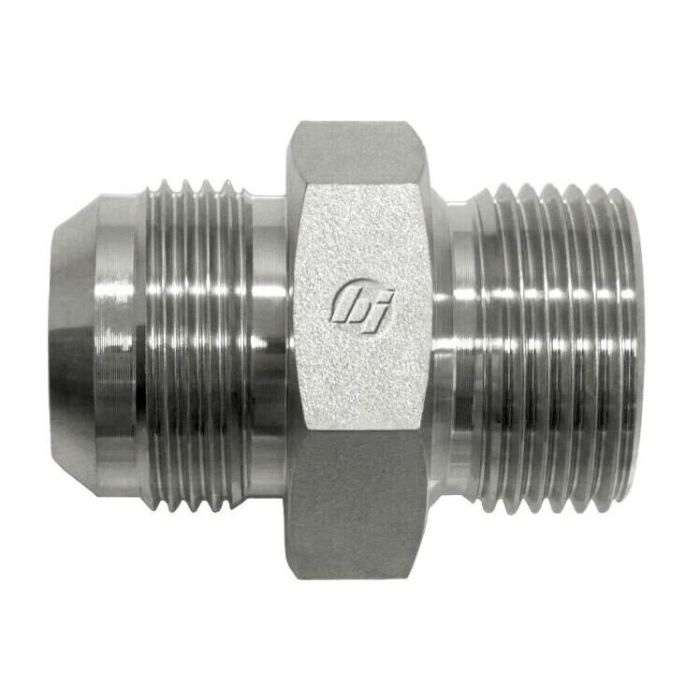

This straight steel fitting, the 08MJ-06MBSPP Straight, features a male JIC SAE 37-degree flare on one end and a male BSPP with a 60-degree seat swivel connection on the other.

The B1 thread size is 3/4-16 with a thread drill of 9.93 mm, conforming to SAE J514 standards. The B2 thread size is 3/8-19 with a thread drill of 9.53 mm, featuring a 60-degree seat swivel connection.

SKU: 7002-08-06

Supplier Part Number (MPN): 7002-08-06

Alternate Part Numbers: A2063-6-8S

Specifications

Connection Size 1 1/2 in	Connection Size 2 3/8 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male BSPP 60 deg Cone Seat	Cubic Inch Space L x W x H Dimensions 1.108 cu-in	Dimension Standards SAE J514	Dimensions 36.7 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 22 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 5100 psi	Series 7002 Series	Thread B1 Drill Dimensions 9.93 mm	Thread B2 Drill Dimensions 9.53 mm	Thread Size 3/4-16, 3/8-19

Product Questions & Answers (1)

Question by: Marvin M on Jun 28, 2025, 8:13 AM

What size wrench do I need for both ends of this fitting?

Answer by: Customer Support on Jun 29, 2025, 8:37 AM

The B1 thread size is 3/4-16, and the B2 thread size is 3/8-19. You'll need appropriately sized wrenches for those.
