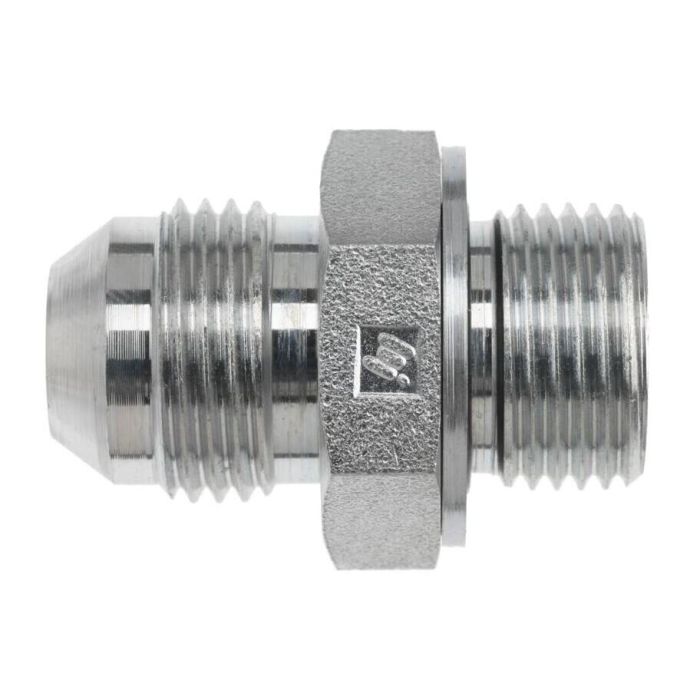

08MJ-12MBSPP STRAIGHT WITH BONDED SEAL

Designed for cross-standard hydraulic connections, the 08MJ-12MBSPP Straight With Bonded Seal joins a 3/4-16 Male JIC SAE 37-degree flare on one end to a 3/4-14 Male BSPP fitting with a 60-degree seat on the other. The bonded seal design at the BSPP end provides a reliable face seal, replacing the need for a separate sealing washer and helping maintain a leak-resistant connection in demanding hydraulic circuits.

Constructed from straight steel and manufactured by Brennan Industries, this adapter is part of the 7002-BS series. The NBR O-ring seal material offers good compatibility with common hydraulic fluids. Thread specifications conform to SAE J514 on the JIC side, making this adapter well-suited for systems that bridge SAE and BSP threaded components, commonly found in mixed-standard mobile and industrial hydraulic equipment.

SKU: 7002-08-12-BS

Supplier Part Number (MPN): 7002-08-12-BS
