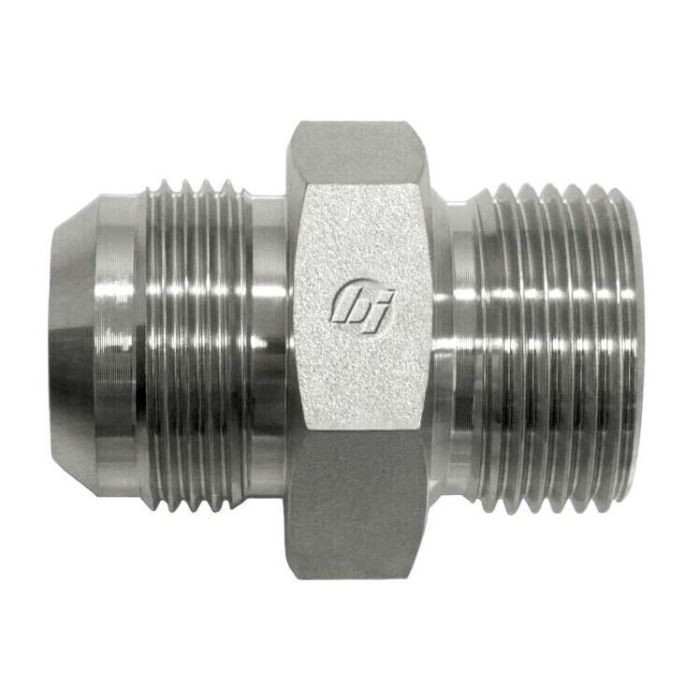

10MJ-08MBSPP Straight

Description & Features

Manufactured from straight steel, the 10MJ-08MBSPP Straight is a hydraulic adapter designed to connect Male JIC SAE 37-degree flare and Male BSPP with 60-degree seat thread ends in a straight configuration. The 7/8-14 JIC end conforms to SAE J514, while the 1/2-14 BSPP end uses a 60-degree seat swivel connection, making this fitting well suited for applications where JIC and BSPP systems meet within a hydraulic circuit.

Part of the Brennan Industries Series 7002, this adapter is a reliable choice for cross-standard hydraulic line connections in industrial equipment and fluid power systems. Thread drill dimensions for both ends measure 11.5 mm. California residents should note that this product is subject to Proposition 65 warnings.

SKU: 7002-10-08

Supplier Part Number (MPN): 7002-10-08

Alternate Part Numbers: 3820-10-08, A2063-8-10S

Specifications

Connection Size 1 5/8 in	Connection Size 2 1/2 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male BSPP 60 deg Cone Seat	Cubic Inch Space L x W x H Dimensions 2.024 cu-in	Dimension Standards SAE J514	Dimensions 43.3 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Series 7002 Series	Thread B1 Drill Dimensions 11.5 mm	Thread B2 Drill Dimensions 11.5 mm	Thread Size 1/2-14 x 7/8-14

Product Questions & Answers (1)

Question by: Merle A on Dec 13, 2025, 10:03 AM

Will this adapter work to connect a JIC line to a BSPP port on my hydraulic valve? Just want to make sure before I order.

Answer by: Customer Support on Dec 14, 2025, 2:39 PM

Designed specifically for connecting Male JIC SAE 37-degree flare ends to Male BSPP ends with a 60-degree seat, this straight adapter should do the trick when you need to join those two systems.
