12MJ-12MBSPP STRAIGHT

Description & Features

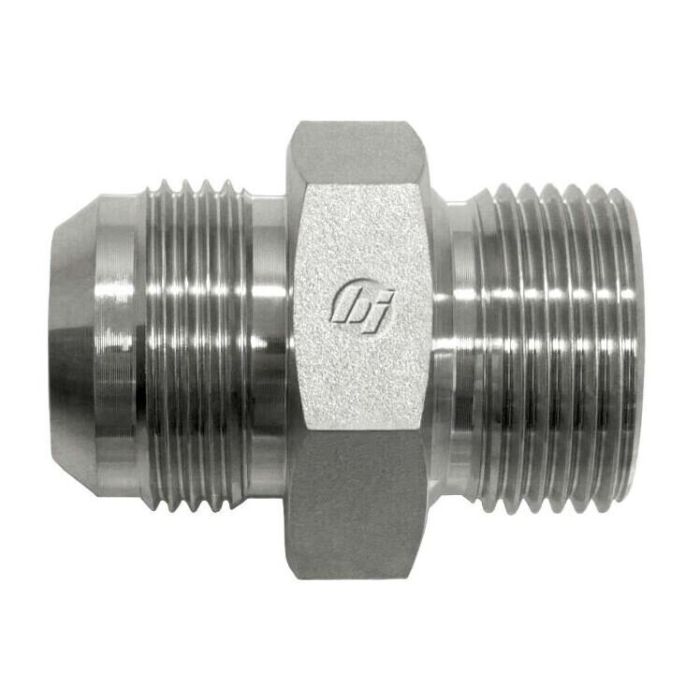

This straight steel fitting, part number 12MJ-12MBSPP STRAIGHT, connects SAE J514 male JIC 37-degree flare to a male BSPP with a 60-degree seat.

The B1 thread size is 1-1/16-12 with a thread drill of 15.5mm. The B2 thread size is 3/4-14 with a thread drill of 22.0mm. This Brennan 7002 series fitting occupies 3.218 cubic inches of space.

SKU: 7002-12-12

Supplier Part Number (MPN): 7002-12-12

Alternate Part Numbers: A2063-12-12S

Specifications

Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male BSPP 60 deg Cone Seat	Cubic Inch Space L x W x H Dimensions 3.218 cu-in	Dimension Standards SAE J514	Dimensions 49.9 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 32 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Series 7002 Series	Thread B1 Drill Dimensions 15.5 mm	Thread B2 Drill Dimensions 22 mm	Thread Size 1-1/16-12 x 3/4-14

Product Questions & Answers (1)

Question by: Lance S on Nov 18, 2025, 7:30 PM

Will this fitting work to connect a JIC flared fitting to a BSPP port?

Answer by: Customer Support on Nov 20, 2025, 12:35 PM

This straight steel fitting is designed to connect an SAE J514 male JIC 37-degree flare to a male BSPP with a 60-degree seat.
