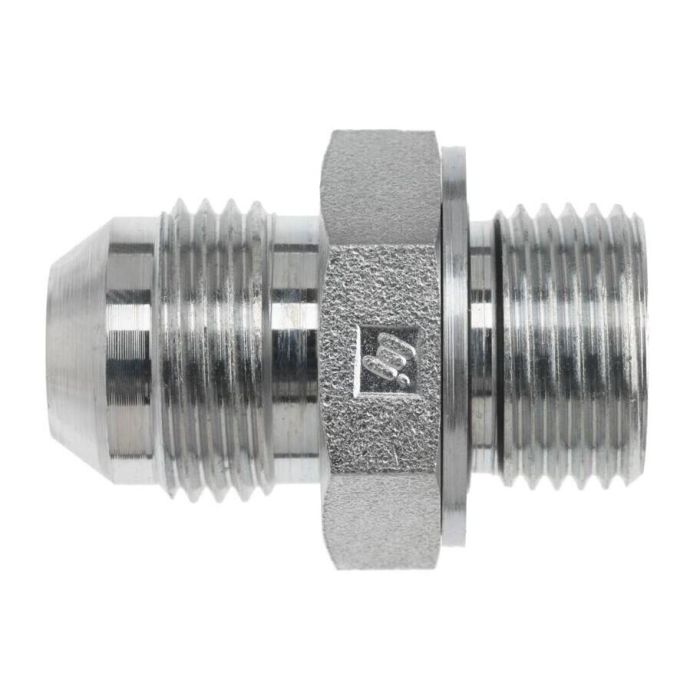

main product photo

16MJ-16MBSPP STRAIGHT BONDED SEAL

Ask A Question

Description & Features

Designed for straight-run hydraulic connections requiring a reliable face seal, this steel fitting joins a 1-5/16-12 Male JIC SAE 37° Flare (SAE J514) on one end to a 1-11 Male BSPP with 60° seat on the other. The bonded seal configuration incorporates an NBR O-ring, providing a leak-resistant connection at the BSPP interface without the need for thread sealants.

The 16MJ-16MBSPP Straight Bonded Seal is manufactured by Brennan Industries as part of the 7002-BS series and is built from straight steel construction. The inclusion of a pre-assembled bonded seal (Brennan part 9900-16) simplifies installation in mixed-standard hydraulic circuits where JIC and BSPP thread forms must be bridged. This fitting is suitable for hydraulic systems requiring compatibility across SAE and BSP standards. California Proposition 65 warning applies.

SKU: 7002-16-16-BS

Supplier Part Number (MPN): 7002-16-16-BS

Specifications

Additional Information
Bonded Seal
Connection Size 1
1 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male BSPP 60 deg Cone Seat
Dimension Standards
SAE J514
Dimensions
2.24 in L
Finish
Zinc Trivalent
Fitting Type
Adapter
Hex Size
1.614 in
Material
Steel
Material Construction
12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
7002-BS Series
Thread Size
1-5/16-12 x 1-11

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Jerry J on Sep 27, 2025, 9:23 PM
Wondering if this bonded seal fitting will work to connect a JIC flared connection to a BSPP port on my hydraulic pump?
Answer by: Customer Support on Sep 29, 2025, 6:09 AM
Designed for exactly that purpose, this fitting will reliably join a 1-5/16-12 Male JIC SAE 37° flared end to a 1-11 Male BSPP with a 60° seat. The pre-assembled bonded seal simplifies making that connection.
