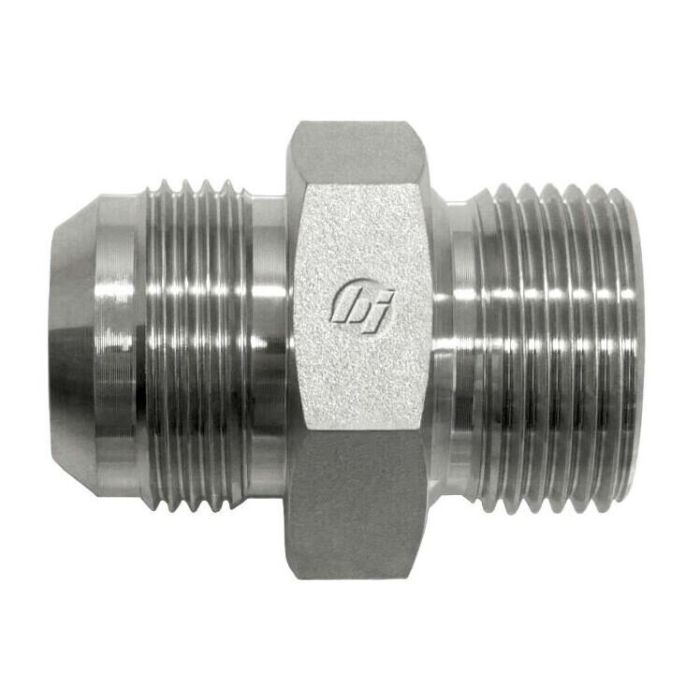

16MJ-16MBSPP Straight

Description & Features

A straight-style hydraulic adapter connecting a 1-5/16-12 Male JIC SAE 37-degree flare on one end to a 1-11 Male BSPP with a 60-degree seat on the other, the 16MJ-16MBSPP Straight is well-suited for joining SAE and metric hydraulic circuits where thread standards differ. The JIC end conforms to SAE J514, while the BSPP end uses a 60-degree seat swivel connection, a common configuration for interfacing North American and European hydraulic equipment.

Manufactured by Brennan Industries from straight steel, this fitting belongs to the Brennan Series 7002. Thread drill dimensions measure 21.4 mm at the JIC end and 22.2 mm at the BSPP end. California residents should note that this product is subject to Prop 65 warning requirements.

SKU: 7002-16-16

Supplier Part Number (MPN): 7002-16-16

Alternate Part Numbers: 3820-16-16, A2063-16-16S

Specifications

Brand BRENNAN	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male BSPP 60 deg Cone Seat	Cubic Inch Space L x W x H Dimensions 5.847 cu-in	Dimension Standards SAE J514	Dimensions 57.1 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 41 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Series 7002 Series	Thread B1 Drill Dimensions 21.4 mm	Thread B2 Drill Dimensions 22.2 mm	Thread Size 1-5/16-12 x 1-11

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
7002-04-04	1/4 in	1/4 in	7/16-20 x 1/4-19
7002-04-06	1/4 in	3/8 in	3/8-19 x 7/16-20
7002-05-04	5/16 in	1/4 in	1/2-20 x 1/4-19
7002-05-06	5/16 in	3/8 in	1/2-20 x 3/8-19
7002-06-04	3/8 in	1/4 in	9/16-18 x 1/4-19
7002-06-06	3/8 in	3/8 in	9/16-18 x 3/8-19
7002-06-08	3/8 in	1/2 in	1/2-14 x 9/16-18
7002-08-06	1/2 in	3/8 in	3/4-16, 3/8-19
7002-08-08	1/2 in	1/2 in	3/4-16 x 1/2-14
7002-10-08	5/8 in	1/2 in	1/2-14 x 7/8-14
7002-12-06	3/4 in	3/8 in	1-1/16-12 x 3/8-19
7002-12-12	3/4 in	3/4 in	1-1/16-12 x 3/4-14
7002-16-12	1 in	3/4 in	3/4-14, 1-5/16-12
7002-16-20	1 in	1-1/4 in	1-5/16-12, 1-1/4-11
7002-20-16	1-1/4 in	1 in	1-5/8-12 x 1-11
7002-20-20	1-1/4 in	1-1/4 in	1-1/4-11 x 1-5/8-12
7002-24-24	1-1/2 in	1-1/2 in	1-7/8-12 x G1-1/2-11
7002-32-32	2 in	2 in	2-1/2-12 x 2-11
