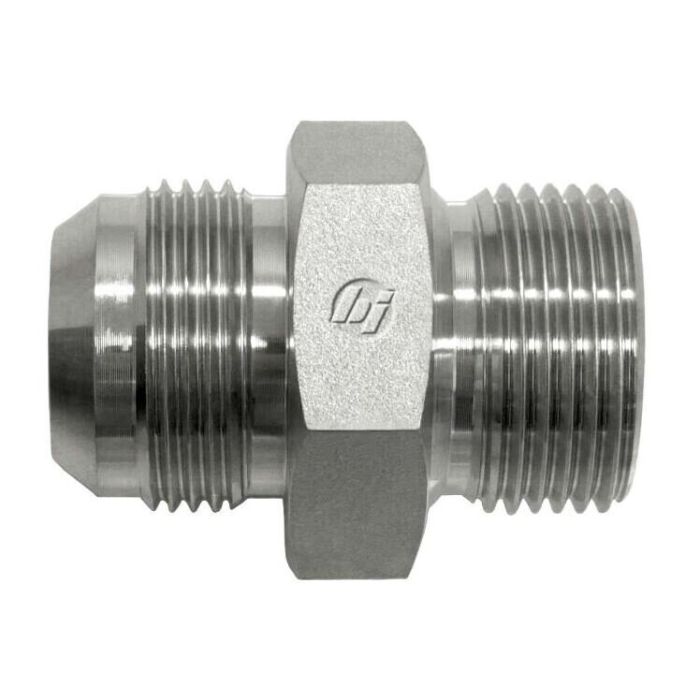

20MJ-16MBSPP STRAIGHT

Description & Features

Crafted from robust straight steel, the 20MJ-16MBSPP STRAIGHT fitting is designed for industrial hydraulic systems requiring reliable male JIC SAE 37-degree flare connections. Featuring a versatile male BSPP with a 60-degree seat, this fitting ensures secure, leak-resistant connections under demanding conditions. The fitting adheres to SAE J514 standards, ensuring compatibility and performance across various applications.

With thread sizes of 1-5/8-12 and 1-11, this fitting provides flexibility for integration into diverse setups. Its compact design, with a cubic inch space of 7.489, makes it suitable for installations where space is at a premium. Trust in Brennan Industries' precision engineering for consistent performance and durability in your hydraulic assemblies.

SKU: 7002-20-16

Supplier Part Number (MPN): 7002-20-16

Alternate Part Numbers: A2063-16-20S

Specifications

Connection Size 1 1-1/4 in	Connection Size 2 1 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male BSPP 60 deg Cone Seat	Cubic Inch Space L x W x H Dimensions 7.489 cu-in	Dimension Standards SAE J514	Dimensions 56.4 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction AISI 12L14/C1045 Steel	Series 7002 Series	Thread B1 Drill Dimensions 27.38 mm	Thread B2 Drill Dimensions 22 mm	Thread Size 1-5/8-12 x 1-11

Product Questions & Answers (1)

Question by: Ray B on May 24, 2025, 8:55 AM

Will this here fitting work on my older hydraulic system? It's got some foreign parts.

Answer by: Customer Support on May 26, 2025, 7:52 AM

Crafted to SAE J514 standards, this fitting should be compatible across various hydraulic systems, as long as they also adhere to the SAE J514 standard. Double-check those thread sizes to be certain, though.
