BRENNAN JIC X BSPP

Ask A Question

Description & Features

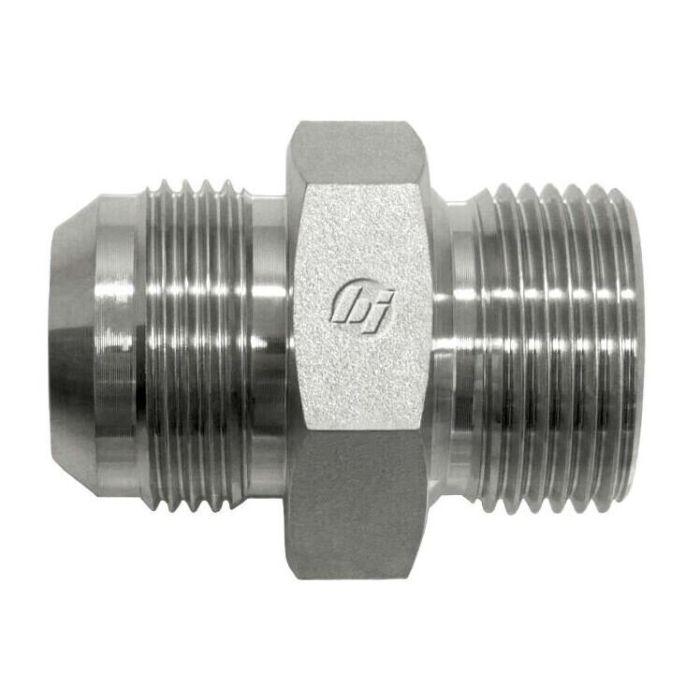

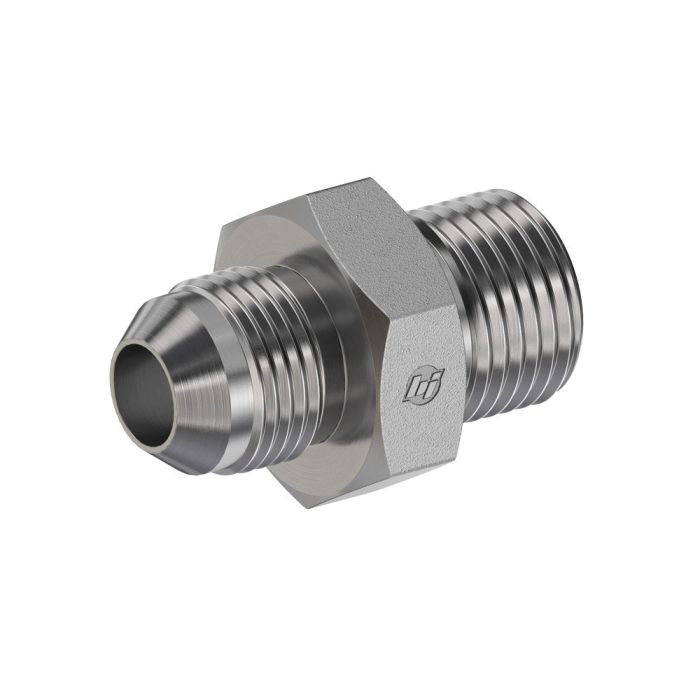

This straight stainless steel fitting is a BRENNAN JIC X BSPP adapter. It features a male JIC SAE 37-degree flare connection on one end, conforming to SAE J514 standards. The other end has a male BSPP connection with a 60-degree seat swivel.

With thread drill measurements of 27.38 mm and 30.5 mm for B1 and B2 respectively, and thread sizes of 1-5/8-12 and 1-1/4-11, this fitting ensures a secure and reliable connection in demanding hydraulic applications.

SKU: 7002-20-20-SS

Supplier Part Number (MPN): 7002-20-20-SS

Alternate Part Numbers: A259-2063-20-20

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male BSPP 60 deg Cone Seat
Dimension Standards
SAE J514
Dimensions
63.3 mm L
Fitting Type
Adapter
Hex Size
1.97 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
1500 psi
Series
7002 Series
Thread Size
1-1/4-11 x 1-5/8-12

Product Questions & Answers (1)

Question by: Lynn J on Apr 25, 2025, 7:40 AM
Will this fitting work for connecting a JIC hose to a BSPP port on my hydraulic pump?
Answer by: Customer Support on Apr 27, 2025, 6:34 AM
This fitting is designed as an adapter between a male JIC SAE 37-degree flare connection and a male BSPP connection with a 60-degree seat.
