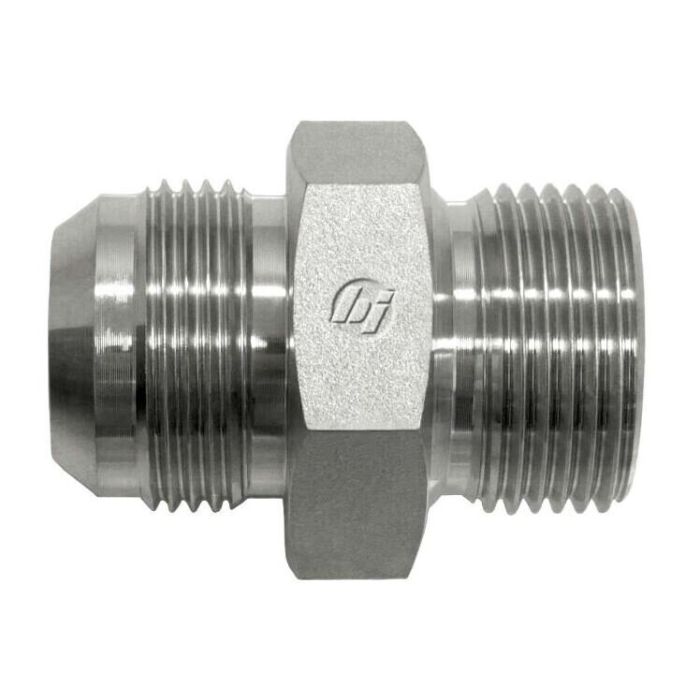

20MJ-20MBSPP STRAIGHT

Ask A Question

Description & Features

Constructed from durable straight steel, the 20MJ-20MBSPP STRAIGHT fitting is designed for robust industrial applications. This component features a Male JIC SAE 37-degree flare thread on B1 and a Male BSPP with a 60-degree seat on B2, ensuring reliable connections in demanding environments. With thread sizes of 1-5/8-12 and 1-1/4-11, this fitting meets the SAE J514 standard for optimal compatibility and performance.

Ideal for use in hydraulic systems requiring secure and efficient fluid transfer, this fitting occupies a cubic inch space of 9.276. It is made by Brennan Industries, a trusted name in hydraulic components. Please note the PROP-65 warning for California residents associated with this product.

SKU: 7002-20-20

Supplier Part Number (MPN): 7002-20-20

Alternate Part Numbers: A2063-20-20S

Specifications

Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male BSPP 60 deg Cone Seat
Cubic Inch Space L x W x H Dimensions
9.276 cu-in
Dimension Standards
SAE J514
Dimensions
63.3 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
1500 psi
Series
7002 Series
Thread B1 Drill Dimensions
27.38 mm
Thread B2 Drill Dimensions
30 mm
Thread Size
1-1/4-11 x 1-5/8-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Harold R on Feb 22, 2026, 6:32 PM
Will this fitting work with standard BSPP threads? I want to make sure it'll seal properly.
Answer by: Customer Support on Feb 24, 2026, 5:22 PM
This fitting is designed with a Male BSPP with a 60-degree seat on B2, making it compatible with standard BSPP threads.
