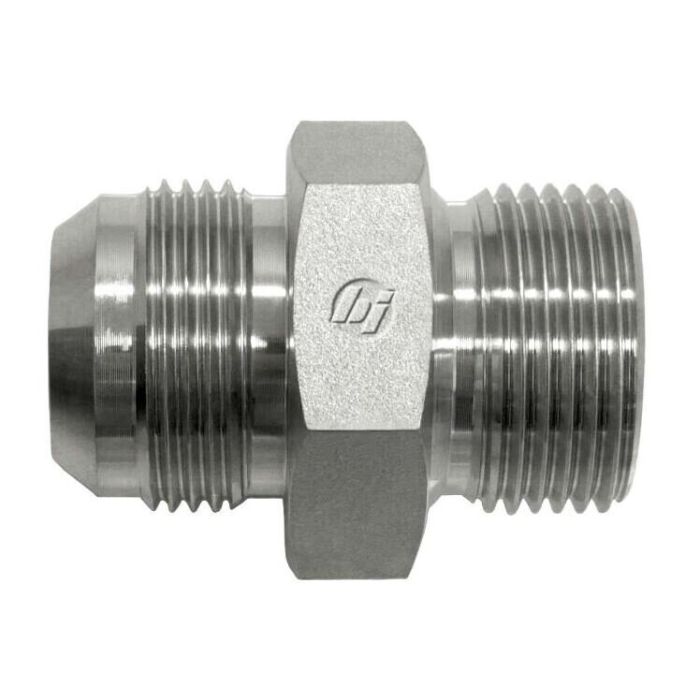

M-JIC M-BSPP STRAIGHT

Description & Features

Crafted from straight steel, this M-JIC M-BSPP Straight fitting is designed for robust industrial applications. Featuring a Male JIC SAE 37-degree flare connection on one end and a Male BSPP with a 60-degree seat on the other, this fitting ensures seamless integration in hydraulic systems. The thread sizes of 1-7/8-12 and 1-1/2-11, along with the adherence to SAE J514 standards, make it a reliable choice for precise and secure connections.

Brennan Industries' commitment to quality is evident in this fitting's durable construction, which occupies a cubic inch space of 12.460. It's engineered to deliver consistent performance under demanding conditions, making it ideal for a variety of industrial applications. Note the PROP-65 WARNING for California residents, ensuring compliance with safety standards.

SKU: 7002-24-24

Supplier Part Number (MPN): 7002-24-24

Alternate Part Numbers: A2063-24-24S

Specifications

Brand BRENNAN	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male BSPP 60 deg Cone Seat	Cubic Inch Space L x W x H Dimensions 12.46 cu-in	Dimension Standards SAE J514	Dimensions 72.5 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 55 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 1500 psi	Series 7002 Series	Thread B1 Drill Dimensions 33 mm	Thread B2 Drill Dimensions 33 mm	Thread Size 1-7/8-12 x G1-1/2-11

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
7002-04-04	1/4 in	1/4 in	7/16-20 x 1/4-19
7002-04-06	1/4 in	3/8 in	3/8-19 x 7/16-20
7002-05-04	5/16 in	1/4 in	1/2-20 x 1/4-19
7002-05-06	5/16 in	3/8 in	1/2-20 x 3/8-19
7002-06-04	3/8 in	1/4 in	9/16-18 x 1/4-19
7002-06-06	3/8 in	3/8 in	9/16-18 x 3/8-19
7002-06-08	3/8 in	1/2 in	1/2-14 x 9/16-18
7002-08-06	1/2 in	3/8 in	3/4-16, 3/8-19
7002-08-08	1/2 in	1/2 in	3/4-16 x 1/2-14
7002-10-08	5/8 in	1/2 in	1/2-14 x 7/8-14
7002-12-06	3/4 in	3/8 in	1-1/16-12 x 3/8-19
7002-12-12	3/4 in	3/4 in	1-1/16-12 x 3/4-14
7002-16-12	1 in	3/4 in	3/4-14, 1-5/16-12
7002-16-16	1 in	1 in	1-5/16-12 x 1-11
7002-16-20	1 in	1-1/4 in	1-5/16-12, 1-1/4-11
7002-20-16	1-1/4 in	1 in	1-5/8-12 x 1-11
7002-20-20	1-1/4 in	1-1/4 in	1-1/4-11 x 1-5/8-12
7002-32-32	2 in	2 in	2-1/2-12 x 2-11
