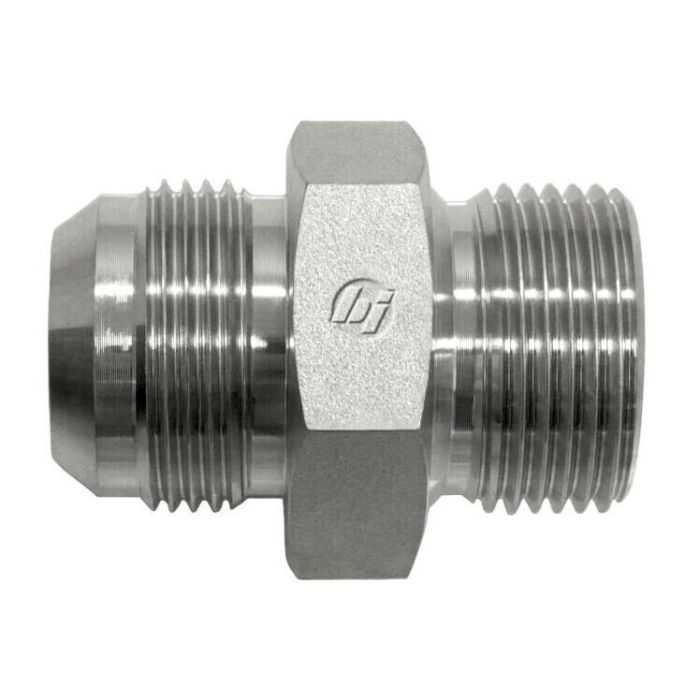

main product photo

32MJ-32MBSPP Straight

Ask A Question

Description & Features

This straight steel fitting is a 32MJ-32MBSPP Straight, part of the 7002 series from Brennan Industries. The male fitting features a 2-1/2-12 thread size on the B1 end, adhering to the SAE J514 standard with a 37-degree JIC flare. The B2 end features a 2-11 thread size with a 60-degree seat swivel connection and a Male BSPP thread type.

The thread drill size for both B1 and B2 is 45.0 mm. This fitting is suitable for various applications requiring a secure and reliable connection between male JIC and Male BSPP components.

SKU: 7002-32-32

Supplier Part Number (MPN): 7002-32-32

Specifications

Connection Size 1
2 in
Connection Size 2
2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male BSPP 60 deg Cone Seat
Dimension Standards
SAE J514
Dimensions
87.9 mm L
Finish
Zinc Trivalent
Fitting Type
Adapter
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
1000 psi
Series
7002 Series
Thread Size
2-1/2-12 x 2-11

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Danny B on Jun 27, 2025, 8:40 AM
What size is this fitting? Just wanna make sure it's what I need before I order.
Answer by: Customer Support on Jun 28, 2025, 6:49 PM
The B1 end of this straight steel fitting has a 2-1/2-12 thread size, while the B2 end is 2-11. Both have a thread drill size of 45.0 mm.
