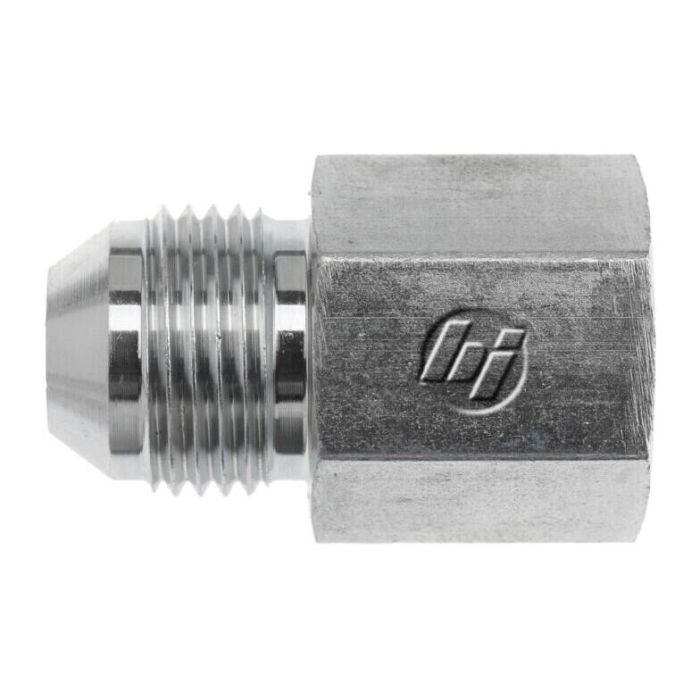

04MJ-04FBSPP STRAIGHT

Description & Features

This straight fitting, part number 7003-04-04, features a male JIC SAE 37-degree flare connection on one end and a female BSPP (G) connection on the other.

Constructed from steel, the 04MJ-04FBSPP STRAIGHT is part of the 7003 series from Brennan and conforms to SAE J514 for the male JIC thread and ISO 1179, ISO 8434-6, and BS 5200 standards for the female BSPP thread.

SKU: 7003-04-04

Supplier Part Number (MPN): 7003-04-04

Specifications

Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Female BSP, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Female BSPP	Cubic Inch Space L x W x H Dimensions 0.727 cu-in	Dimension Standards SAE J514	Dimensions 33 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 19 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 5800 psi	Series 7003 Series	Thread B1 Drill Dimensions 4.37 mm	Thread Size 7/16-20 x 1/4-19

Product Questions & Answers (1)

Question by: Diane W on Jul 12, 2025, 3:17 PM

Will this fitting work with standard JIC connections on my hydraulic hoses?

Answer by: Customer Support on Jul 14, 2025, 6:08 AM

This straight fitting is designed with a male JIC SAE 37-degree flare on one end, so it should connect fine with any standard JIC setup.
