BRENNAN 24MJIC/24FBSPP

Ask A Question

Description & Features

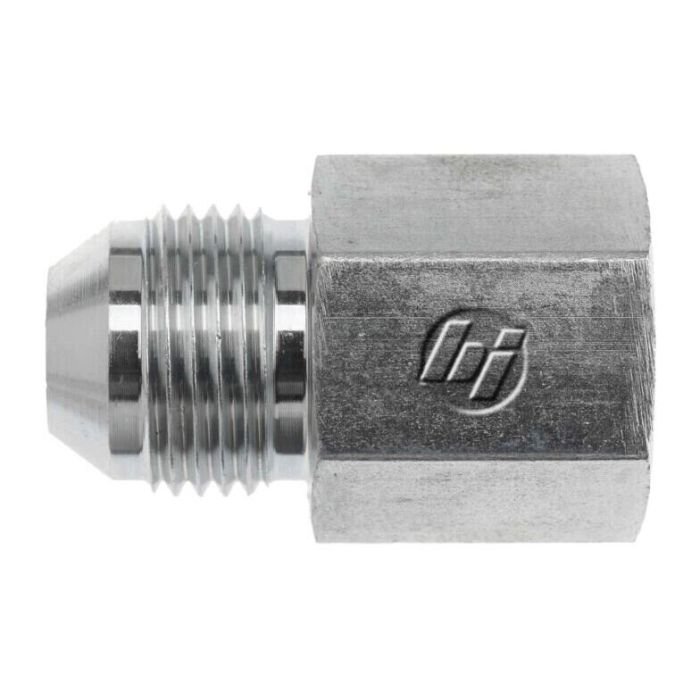

This Brennan straight fitting, designated as 24MJIC/24FBSPP, features a straight steel raw material type and belongs to the 7003 series.

It incorporates a 1-7/8-12 Thread Size B1 with SAE J514 Thread Specification and MALE JIC SAE 37 DEGREE FLARE Thread Type B1, along with a 1-1/2-11 Thread Size B2 featuring ISO 1179, ISO 8434-6, BS 5200 Thread Specification, and FEMALE BSPP (G) Thread Type B2. The Thread Drill B1 Mm measures 33.3.

SKU: 7003-24-24

Supplier Part Number (MPN): 7003-24-24

Specifications

Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Female BSP, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female BSPP
Cubic Inch Space L x W x H Dimensions
12.368 cu-in
Dimension Standards
SAE J514
Dimensions
67 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
55 mm
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
3000 psi
Series
7003 Series
Thread B1 Drill Dimensions
33.3 mm
Thread Size
1-7/8-12 x G1-1/2-11

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Keith B on Apr 10, 2025, 9:56 AM
Will this fitting hold up to hydraulic pressures in a log splitter application?
Answer by: Customer Support on Apr 12, 2025, 6:46 AM
Designed for hydraulic applications, this Brennan straight fitting features steel raw material, suggesting it can handle typical hydraulic pressures, though specific pressure ratings aren't provided.
