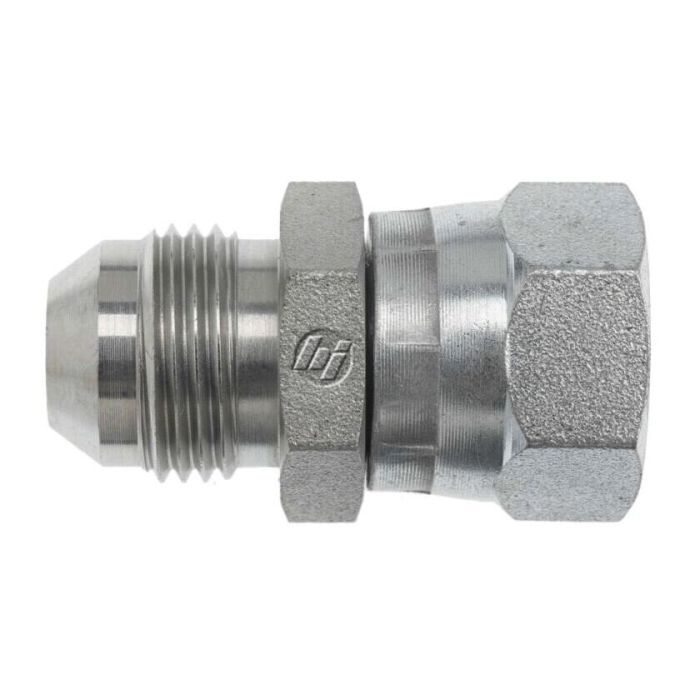

06MJ-06FBSPPS Straight

Description & Features

This straight steel fitting, designated as 06MJ-06FBSPPS Straight, is part of the 7004 series. It features a male JIC SAE 37-degree flare connection with a 9/16-18 thread size, conforming to SAE J514 standards.

On the opposite end, the fitting offers a female BSPP swivel connection with a 3/8-19 thread size. This connection adheres to ISO 1179, ISO 8434-6, and BS 5200 specifications. The fitting's design ensures secure and reliable connections in hydraulic applications.

SKU: 7004-06-06

Supplier Part Number (MPN): 7004-06-06

Specifications

Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Female BSP Swivel, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Female BSPP Swivel	Cubic Inch Space L x W x H Dimensions 1.199 cu-in	Dimension Standards SAE J514	Dimensions 41.1 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 19 x 22 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 4000 psi	Series 7004 Series	Thread B1 Drill Dimensions 7 mm	Thread B2 Drill Dimensions 7 mm	Thread Size 9/16-18 x 3/8-19

Product Questions & Answers (1)

Question by: Rod H on Feb 28, 2026, 9:56 PM

Will this fitting work to connect a 9/16-18 male JIC to a 3/8-19 female BSPP?

Answer by: Customer Support on Mar 2, 2026, 10:04 AM

Yes, this straight fitting is designed to adapt a 9/16-18 male JIC SAE 37-degree flare connection to a 3/8-19 female BSPP swivel connection.
