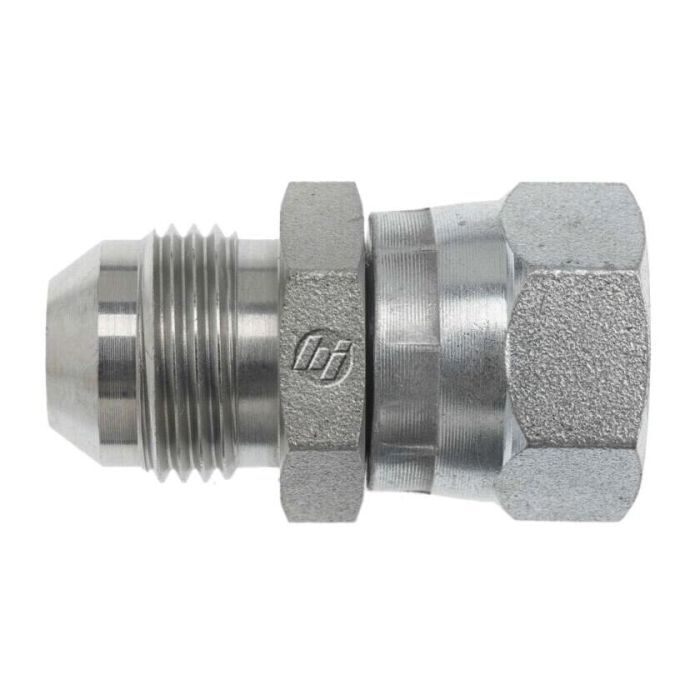

16MJ-16FBSPPS Straight

Combining a 1-5/16-12 Male JIC SAE 37-degree flare on one end with a 1-11 Female BSPP swivel on the other, the 16MJ-16FBSPPS Straight adapter provides a reliable straight connection between SAE J514 and ISO/BSP fluid systems. The female BSPP swivel end conforms to ISO 1179, ISO 8434-6, and BS 5200, making it well suited for applications where JIC and metric BSP circuits need to be joined without adapting thread type at both components.

Manufactured from straight steel by Brennan Industries, this fitting carries a hex measurement of 41.0 mm and thread drill dimensions of 20.5 mm on both ends. The Series 7004 designation identifies it as part of Brennan's standard straight adapter line. California residents should note this product is subject to a Prop 65 warning.

SKU: 7004-16-16

Supplier Part Number (MPN): 7004-16-16

Alternate Part Numbers: 3240-16-16
