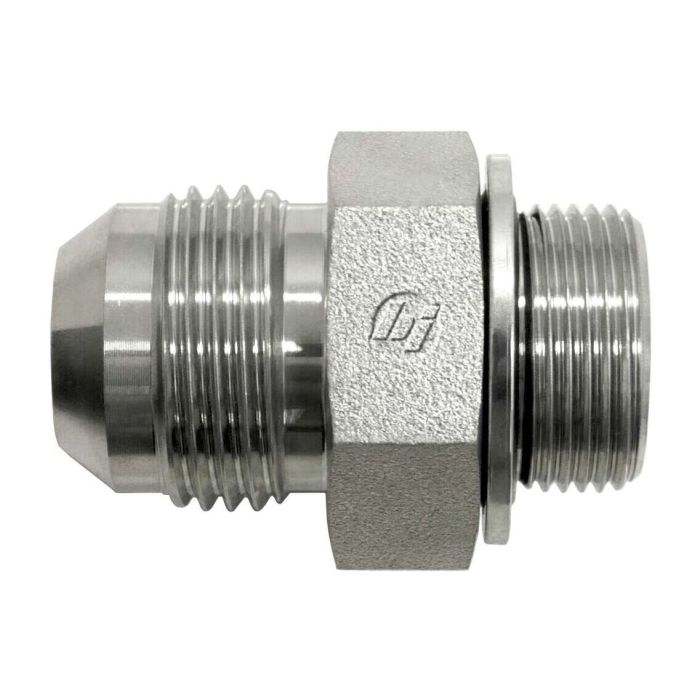

04MJ-10MM STRAIGHT WITH BONDED SEAL

Description & Features

Constructed from straight steel, the 04MJ-10MM Straight With Bonded Seal ensures durability and reliable performance in industrial applications. Its NBR O-ring seal provides excellent resistance to hydraulic fluids, making it ideal for demanding environments. The product features a male JIC SAE 37-degree flare thread (7/16-20) on one end and a male metric thread (M10X1.0) on the other, meeting SAE J514 standards for robust connection integrity.

This hydraulic fitting is part of the Brennan Series 7005-BS and is equipped with a bonded seal to prevent leaks, ensuring efficient and safe operation. The compact design, with dimensions allowing for a cubic inch space of 0.564 L x W x H, is engineered for applications where space is at a premium.

SKU: 7005-04-10-BS

Supplier Part Number (MPN): 7005-04-10-BS

Specifications

Additional Information Bonded Seal	Connection Size 1 1/4 in	Connection Size 2 10 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male Metric 60 deg Cone	Dimension Standards SAE J514	Dimensions 1.26 in L	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 0.67 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series 7005-BS Series	Thread Size 7/16-20, M10x1

Product Questions & Answers (1)

Question by: Shawn P on Nov 11, 2025, 6:35 AM

So, this'll fit a standard 7/16-20 male JIC, right? Just want to make sure before I order.

Answer by: Customer Support on Nov 12, 2025, 2:09 PM

you've got it right. This fitting has a male JIC SAE 37-degree flare thread (7/16-20) on one end, so it should fit your standard connection.
