04MJ-12MM STRAIGHT WITH BONDED SEAL

Description & Features

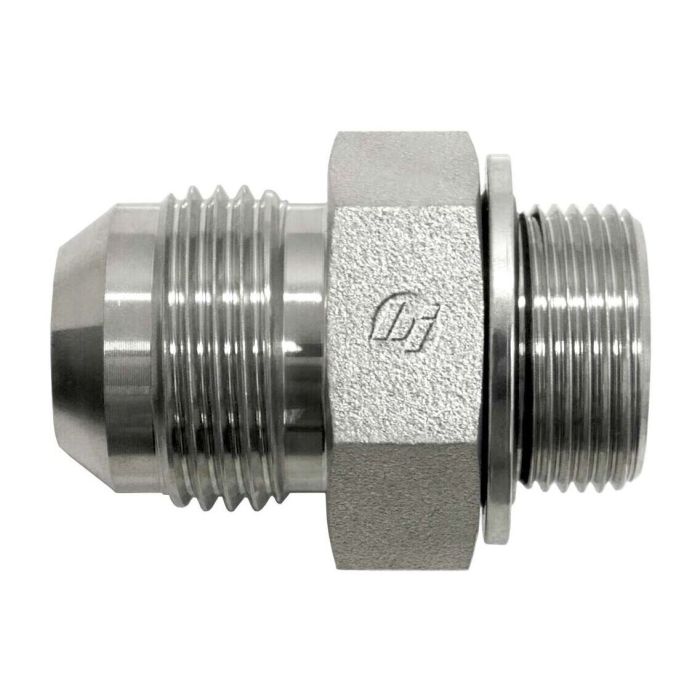

This straight steel fitting, part number 7005-04-12-BS, features a 7/16-20 male JIC SAE 37-degree flare thread (B1) and a M12X1.5 male metric thread (B2). The 04MJ-12MM STRAIGHT WITH BONDED SEAL also includes a metric bonded seal (Brennan Assembled Metric Bonded Seal 8800-12) with NBR O-ring seal material.

Thread drill sizes are 4.4 mm (B1) and 5.0 mm (B2), respectively. This straight fitting conforms to SAE J514 thread specifications.

SKU: 7005-04-12-BS

Supplier Part Number (MPN): 7005-04-12-BS

Specifications

Additional Information Bonded Seal	Connection Size 1 1/4 in	Connection Size 2 12 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male Metric 60 deg Cone	Dimension Standards SAE J514	Dimensions 1.34 in L	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 0.67 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series 7005-BS Series	Thread Size 7/16-20 x M12x1.5

Product Questions & Answers (1)

Question by: Pete S on Apr 27, 2025, 8:28 PM

What size drill bit do I need for the M12X1.5 thread?

Answer by: Customer Support on Apr 29, 2025, 6:17 PM

For the M12X1.5 male metric thread, you'll want to use a 5.0 mm drill bit.
