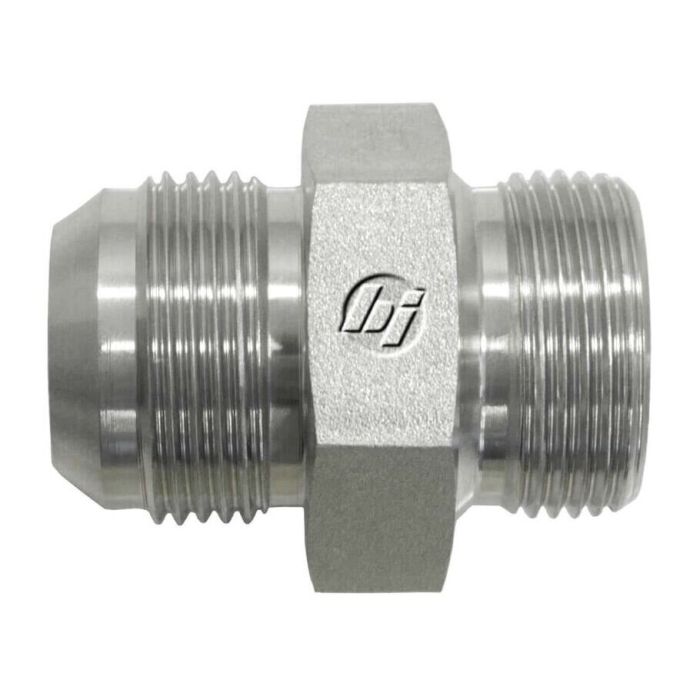

04MJ-12MM STRAIGHT. (12MMX1.50 THREAD)

Description & Features

Designed for robust industrial applications, this straight steel fitting offers reliable performance in hydraulic systems. The 04MJ-12MM STRAIGHT fitting features a 12MM x 1.50 metric thread on one end and a 7/16-20 Male JIC SAE 37-degree flare on the other, ensuring compatibility with a broad range of equipment. Manufactured according to SAE J514 and ISO 9974 standards, it provides assured quality and dependability in demanding environments.

Constructed from durable straight steel, this fitting is engineered for longevity and resistance to wear under pressure. The compact design occupies just 0.600 cubic inches of space, making it ideal for installations with space constraints. Trust Brennan Industries for precise, high-quality hydraulic components tailored to meet the rigorous demands of industrial applications.

SKU: 7005-04-12

Supplier Part Number (MPN): 7005-04-12

Specifications

Connection Size 1 1/4 in	Connection Size 2 12 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male Metric 60 deg Cone	Cubic Inch Space L x W x H Dimensions 0.6 cu-in	Dimension Standards SAE J514	Dimensions 33 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 19 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Series 7005 Series	Thread B1 Drill Dimensions 4.4 mm	Thread B2 Drill Dimensions 5 mm	Thread Size 7/16-20 x M12x1.5

Product Questions & Answers (1)

Question by: Ralph M on Nov 12, 2025, 12:03 PM

What size thread does this fitting use?

Answer by: Customer Support on Nov 13, 2025, 8:34 PM

This straight steel fitting uses a 12MM x 1.50 metric thread on one end and a 7/16-20 Male JIC SAE 37-degree flare on the other.
