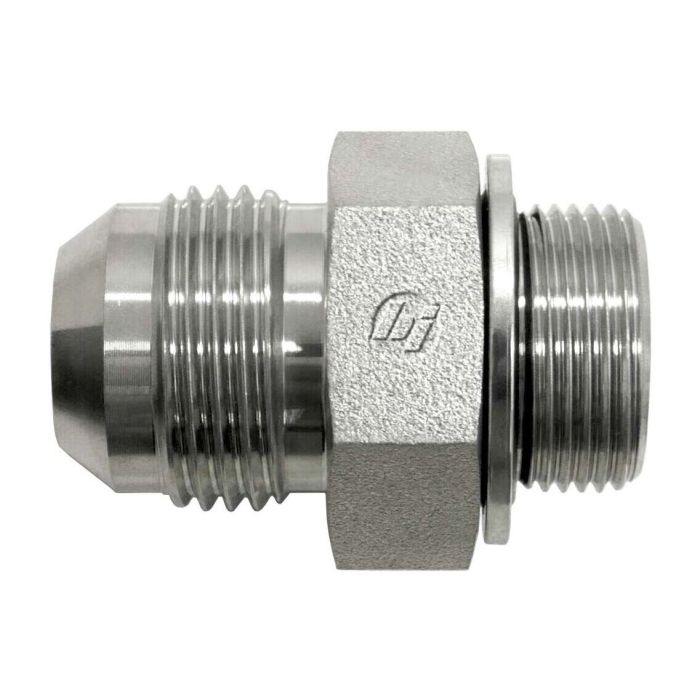

04MJ-14MM STRAIGHT WITH BONDED SEAL

Description & Features

A straight steel adapter combining a 7/16-20 Male JIC SAE 37° Flare (SAE J514) end with an M14x1.5 Male Metric thread, the 04MJ-14MM Straight With Bonded Seal is suited for hydraulic line connections where a JIC-to-metric transition is required in a compact, inline configuration. The bonded seal, Brennan part 8800-14, uses an NBR O-ring material, providing a reliable face seal on the metric end without the need for additional sealing components.

Built from straight steel construction, this fitting belongs to Brennan Industries' 7005-BS series. Thread drill dimensions of 4.4 mm (B1) and 6.0 mm (B2) are specified for installation reference. California residents should note this product is subject to a Proposition 65 warning.

SKU: 7005-04-14-BS

Supplier Part Number (MPN): 7005-04-14-BS

Specifications

Additional Information Bonded Seal	Connection Size 1 1/4 in	Connection Size 2 14 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male Metric 60 deg Cone	Dimension Standards SAE J514	Dimensions 1.34 in L	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 3/4 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series 7005-BS Series	Thread Size M14x1.5 x 7/16-20

Product Questions & Answers (1)

Question by: Kirk H on Oct 21, 2025, 4:07 PM

Will this here fitting hold up alright for connecting a hydraulic line where I need to go from JIC to metric?

Answer by: Customer Support on Oct 23, 2025, 2:11 PM

Absolutely, this straight steel adapter is designed specifically for hydraulic line connections requiring a JIC-to-metric transition. Its inline configuration should keep things compact.
