04MJ-18MM STRAIGHT WITH BONDED SEAL

Description & Features

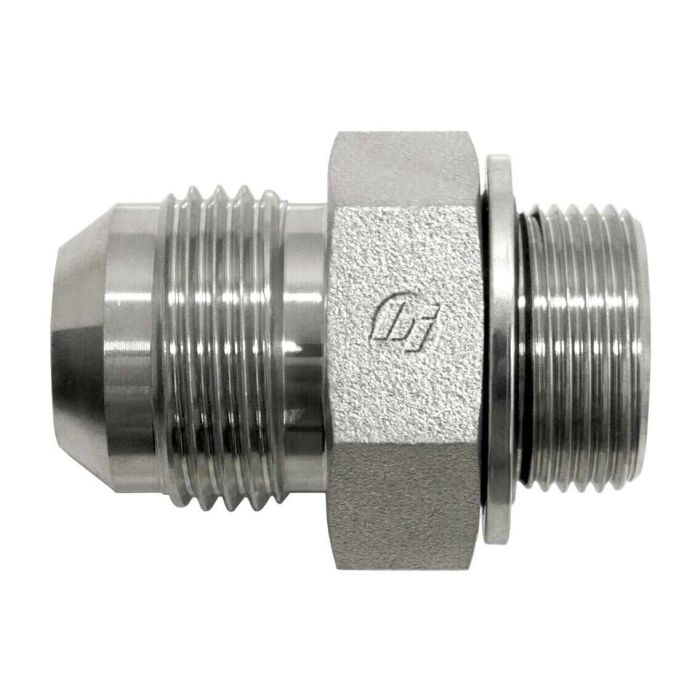

This straight steel fitting, also known as 04MJ-18MM STRAIGHT WITH BONDED SEAL, features a male JIC SAE 37-degree flare thread and a male metric thread.

It utilizes an NBR O-ring seal material and includes a Brennan assembled metric bonded seal. The B1 thread drill measures 4.4 mm, while the B2 thread drill measures 11.0 mm. The B1 thread size is 7/16-20, and the B2 thread size is M18X1.5, with a SAE J514 thread specification for B1.

SKU: 7005-04-18-BS

Supplier Part Number (MPN): 7005-04-18-BS

Specifications

Additional Information Bonded Seal	Connection Size 1 1/4 in	Connection Size 2 18 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male Metric 60 deg Cone	Dimension Standards SAE J514	Dimensions 1.36 in L	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 0.87 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series 7005-BS Series	Thread Size 7/16-20 x M18x1.5

Product Questions & Answers (1)

Question by: Danny E on May 27, 2025, 6:18 PM

Just wanna make sure, this fitting will work with my M18X1.5 connection?

Answer by: Customer Support on May 29, 2025, 3:49 PM

Yes, this straight steel fitting has an M18X1.5 male metric thread, so it will connect to your M18X1.5 connection.
