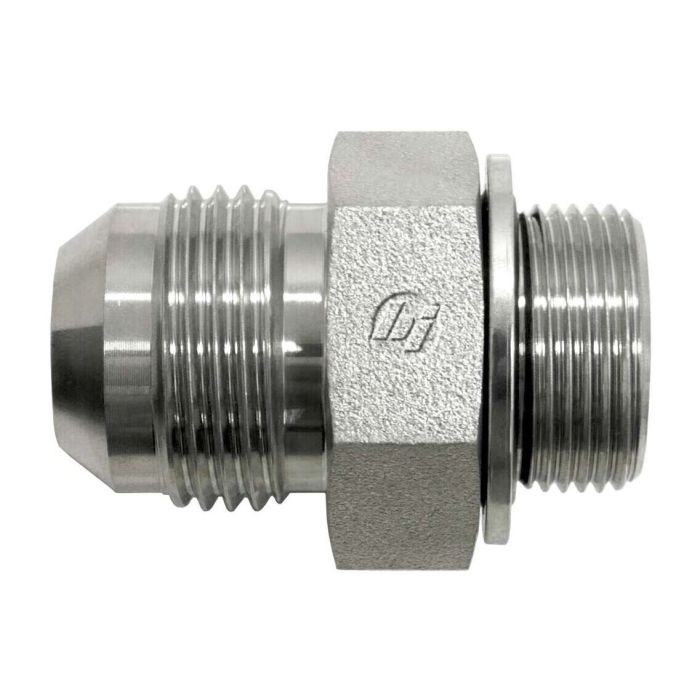

main product photo

04MJ-20MM STRAIGHT WITH BONDED SEAL

Ask A Question

Description & Features

Designed for connecting SAE 37-degree flare and metric threaded lines in a single straight adapter, the 04MJ-20MM Straight With Bonded Seal bridges a 7/16-20 Male JIC fitting to an M20x1.5 Male Metric thread. The bonded seal on the metric end provides a reliable face seal, eliminating the need for a separate O-ring at assembly. Construction is straight steel with an NBR O-ring seal material, suited for hydraulic fluid compatibility across a range of standard industrial applications.

Manufactured by Brennan Industries under the 7005-BS series, this adapter conforms to SAE J514 on the JIC side. The assembled metric bonded seal component is referenced as Brennan part 8800-20. California residents should note that this product is subject to Prop 65 warnings as indicated by Brennan Industries.

SKU: 7005-04-20-BS

Supplier Part Number (MPN): 7005-04-20-BS

Specifications

Additional Information
Bonded Seal
Connection Size 1
1/4 in
Connection Size 2
20 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male Metric 60 deg Cone
Dimension Standards
SAE J514
Dimensions
1.46 in L
Finish
Zinc Trivalent
Fitting Type
Adapter
Hex Size
1.06 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
7005-BS Series
Thread Size
7/16-20 x M20x1.5

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Warren J on Oct 10, 2025, 6:25 AM
Will this here fitting work to connect a 7/16 JIC to a M20 metric line?
Answer by: Customer Support on Oct 12, 2025, 6:35 AM
This adapter is indeed designed to bridge that connection, going from a 7/16-20 Male JIC fitting over to an M20x1.5 Male Metric thread.
