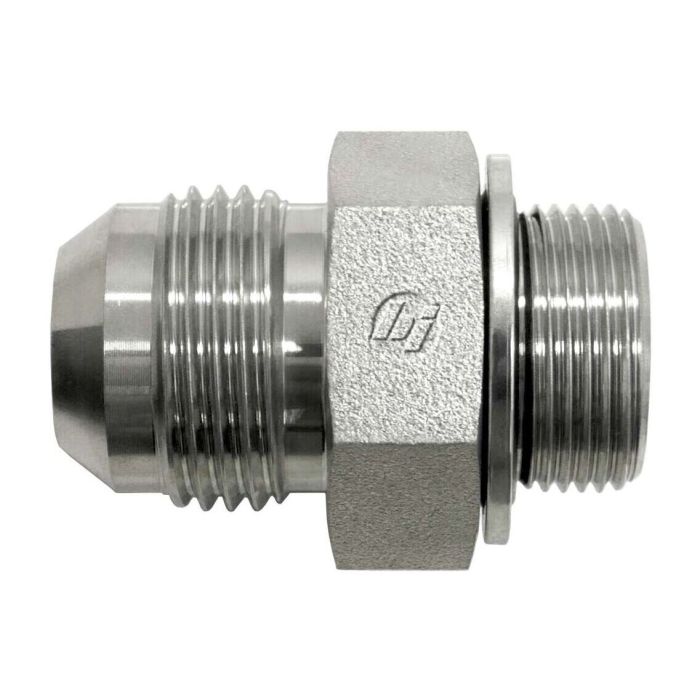

main product photo

04MJ-22MM STRAIGHT WITH BONDED SEAL

Ask A Question

Description & Features

This straight steel fitting features a 7/16-20 thread size B1 with SAE J514 thread specification and a Male JIC SAE 37 Degree Flare thread type. The B2 side has a M22X1.5 thread size and Male Metric thread type. The 04MJ-22MM STRAIGHT WITH BONDED SEAL includes an 8800-22 Brennan Assembled Metric Bonded Seal and a NBR Oring Seal Material. It has a thread drill B1 of 4.4mm and a thread drill B2 of 12.3mm.

SKU: 7005-04-22-BS

Supplier Part Number (MPN): 7005-04-22-BS

Specifications

Additional Information
Bonded Seal
Connection Size 1
1/4 in
Connection Size 2
22 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male Metric 60 deg Cone
Dimension Standards
SAE J514
Dimensions
1-1/2 in L
Finish
Zinc Trivalent
Fitting Type
Adapter
Hex Size
1.06 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
7005-BS Series
Thread Size
7/16-20 x M22x1.5

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Rod H on Aug 1, 2025, 6:51 AM
What size is that other end, the B2 side, of this fitting?
Answer by: Customer Support on Aug 2, 2025, 8:47 AM
The B2 side has a M22X1.5 thread size and Male Metric thread type.
