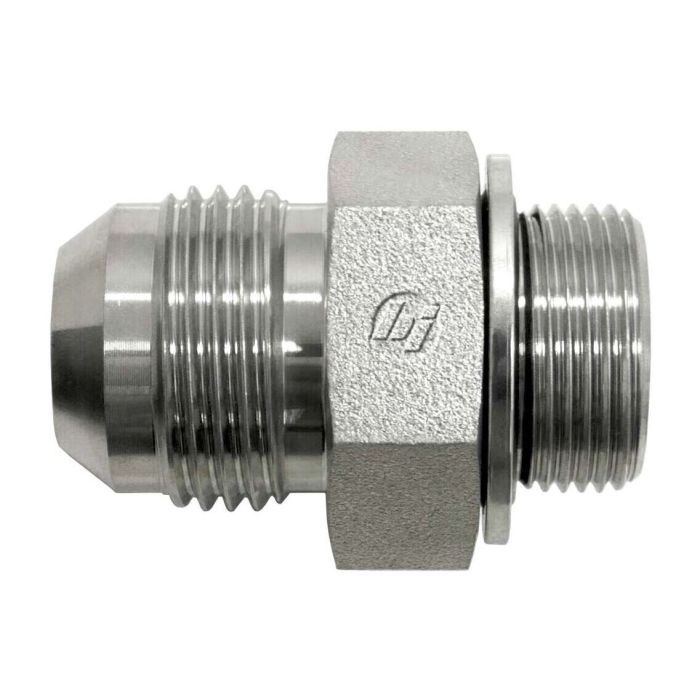

STR MALE M12X1.5 X MALE JIC 1/2IN BRASS

Description & Features

This straight fitting features a male Metric M12X1.5 thread on one end and a male JIC 1/2in SAE 37 degree flare thread on the other. The STR MALE M12X1.5 X MALE JIC 1/2IN BRASS fitting has a straight steel raw material type with NBR O-ring seal material. This fitting uses a Brennan Assembled Metric Bonded Seal 8800-12.

This part is part of the 7005-BS series. The thread drill size for thread B1 is 7.5mm, while thread drill size for thread B2 is 5.0mm.

SKU: 7005-06-12-BS

Supplier Part Number (MPN): 7005-06-12-BS

Specifications

Additional Information Bonded Seal	Connection Size 1 3/8 in	Connection Size 2 12 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male Metric 60 deg Cone	Dimension Standards SAE J514	Dimensions 1.3 in L	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 0.67 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series 7005-BS Series	Thread Size 9/16-18 x M12x1.5

Product Questions & Answers (1)

Question by: Dustin S on Feb 7, 2026, 9:16 PM

Hey, will this fitting hold up okay in an oily environment? I'm using it on some hydraulic lines for my tractor.

Answer by: Customer Support on Feb 9, 2026, 8:50 AM

Its NBR O-ring seal is designed for good resistance to oils and fuels commonly found in hydraulic systems.
