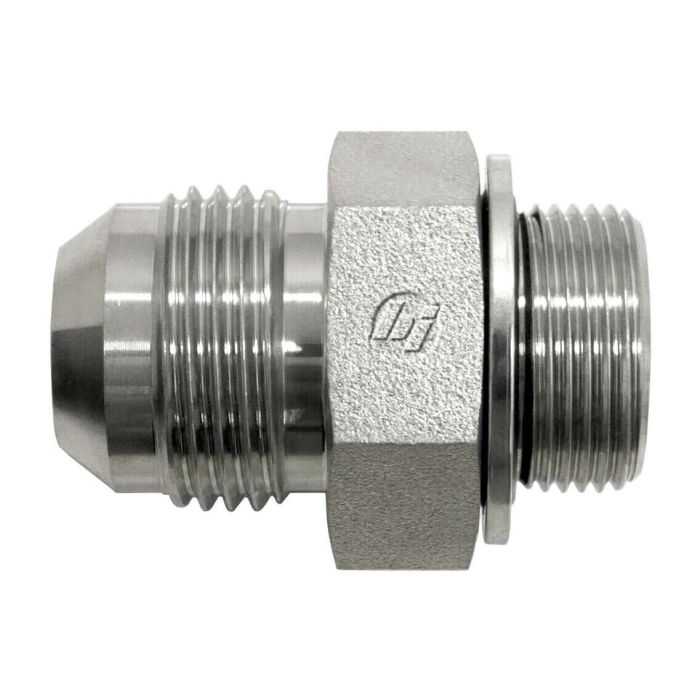

06MJ-16MM STRAIGHT WITH BONDED SEAL

Description & Features

This straight steel fitting features a male JIC SAE 37-degree flare connection on one end and a male metric connection on the other. The 06MJ-16MM STRAIGHT WITH BONDED SEAL features thread sizes of 9/16-18 (SAE J514) and M16X1.5.

It incorporates a metric bonded seal made of NBR (Nitrile Butadiene Rubber), providing a reliable seal. The thread drill sizes are B1 7.5mm and B2 7.5mm.

SKU: 7005-06-16-BS

Supplier Part Number (MPN): 7005-06-16-BS

Specifications

Additional Information Bonded Seal	Connection Size 1 3/8 in	Connection Size 2 S16	Connection Type Male JIC, Male Metric	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male Metric 60 deg Cone	Dimension Standards SAE J514	Dimensions 1.34 in L	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 0.87 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series 7005-BS Series	Thread Size 9/16-18 x M16x1.5

Product Questions & Answers (1)

Question by: Dwayne R on Nov 15, 2025, 9:02 PM

So this here is just a straight fitting, right? It ain't got no angle or nothin?

Answer by: Customer Support on Nov 17, 2025, 7:00 AM

That's right, this is a straight steel fitting. One end has a male JIC SAE 37-degree flare connection, and the other end is a male metric connection.
