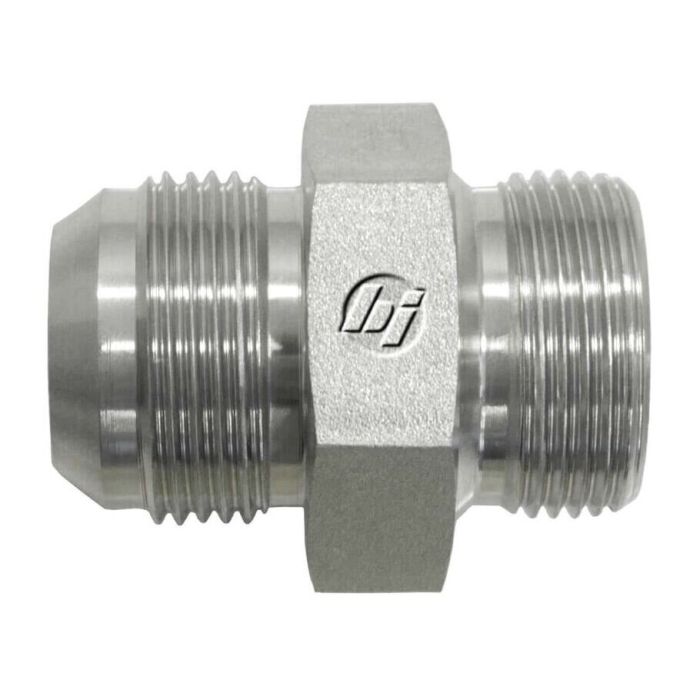

06MJ-16MM STRAIGHT (16MMX1.50 THREAD)

Description & Features

Designed for cross-standard hydraulic connections, the 06MJ-16MM Straight (16MMX1.50 Thread) is a straight steel fitting that bridges a 9/16-18 Male JIC SAE 37-degree flare (SAE J514) on one end with an M16x1.5 Male Metric thread (ISO 9974) on the other. This dual-standard configuration makes it well-suited for systems where SAE and metric hydraulic components must be joined without adapters or intermediate fittings.

Manufactured by Brennan Industries, this fitting is constructed from straight steel and belongs to the Brennan 7005 series. Both thread ends share a 7.5mm drill specification, and the compact form factor keeps space requirements minimal. California residents should note that this product carries a Proposition 65 warning.

SKU: 7005-06-16

Supplier Part Number (MPN): 7005-06-16

Specifications

Connection Size 1 3/8 in	Connection Size 2 S16	Connection Type Male JIC, Male Metric	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male Metric 60 deg Cone	Cubic Inch Space L x W x H Dimensions 1.004 cu-in	Dimension Standards SAE J514	Dimensions 34.6 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 22 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Series 7005 Series	Thread B1 Drill Dimensions 7.5 mm	Thread B2 Drill Dimensions 7.5 mm	Thread Size 9/16-18 x M16x1.5

Product Questions & Answers (1)

Question by: Vince R on Sep 27, 2025, 5:07 PM

So this fitting has two different thread types on it? I'm trying to hook up a metric line to something with a JIC fitting.

Answer by: Customer Support on Sep 29, 2025, 6:26 AM

That's exactly right. It's designed to connect a 9/16-18 Male JIC SAE 37-degree flare to an M16x1.5 Male Metric thread.
