06MJ-18MM STRAIGHT. (18MMX1.50 THREAD)

Description & Features

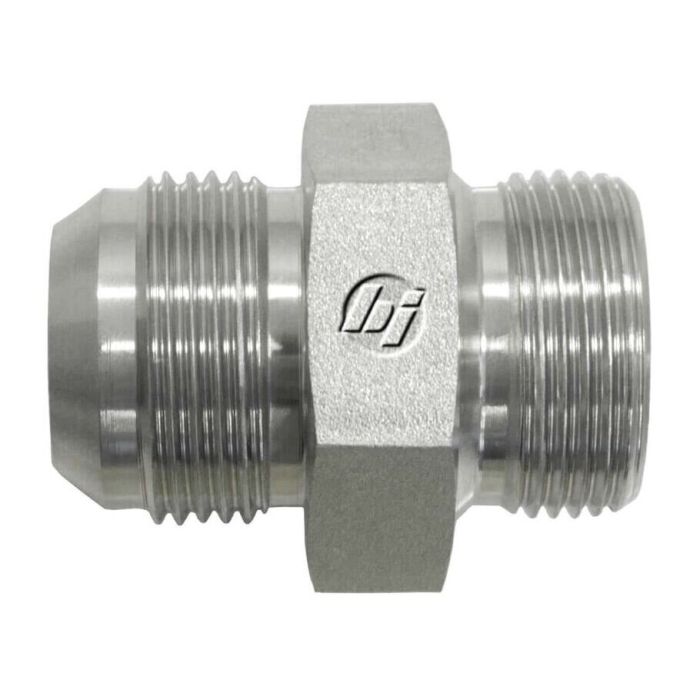

A straight hydraulic adapter connecting a 9/16-18 Male JIC SAE 37° Flare end to an M18x1.5 Male Metric thread, the 06MJ-18MM Straight bridges SAE J514 and ISO 9974 thread standards in a single compact fitting. Manufactured from steel, it is suited for hydraulic circuits where JIC and metric connections must be joined inline without bends or offsets.

The SAE 37° flare seat on the JIC end ensures a reliable metal-to-metal seal, while the ISO 9974-compliant metric end provides compatibility with metric-ported components commonly found in European and OEM hydraulic equipment. Brennan Industries produces this fitting as part of their Series 7005 straight adapter line.

SKU: 7005-06-18

Supplier Part Number (MPN): 7005-06-18

Specifications

Connection Size 1 3/8 in	Connection Size 2 18 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male Metric 60 deg Cone	Cubic Inch Space L x W x H Dimensions 1.004 cu-in	Dimension Standards SAE J514	Dimensions 34.6 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Series 7005 Series	Thread B1 Drill Dimensions 7.5 mm	Thread B2 Drill Dimensions 11 mm	Thread Size 9/16-18 x M18x1.5

Product Questions & Answers (1)

Question by: Gary C on Jun 20, 2025, 8:59 AM

So this thing connects a JIC to a metric thread, right? Just want to make sure I'm understanding it correctly.

Answer by: Customer Support on Jun 21, 2025, 10:30 AM

That's right. It directly adapts a 9/16-18 Male JIC SAE 37° Flare end to an M18x1.5 Male Metric thread.
