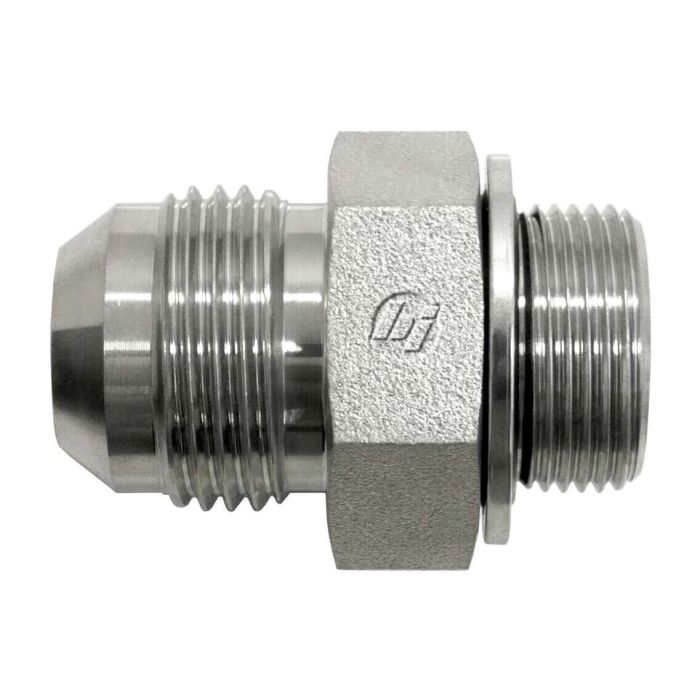

06MJ-20MM STRAIGHT WITH BONDED SEAL

Designed for straight-line hydraulic connections, the 06MJ-20MM Straight With Bonded Seal is a steel fitting that bridges a 9/16-18 Male JIC SAE 37° Flare end (per SAE J514) with an M20x1.5 Male Metric thread, sealed on the metric side with a bonded seal using an NBR O-ring. This combination makes it well suited for mixed-standard hydraulic circuits where JIC and metric connections must interface cleanly.

Manufactured by Brennan Industries under the 7005-BS series, the fitting is constructed from straight steel and uses a pre-assembled metric bonded seal (Brennan part 8800-20) to ensure a reliable, leak-resistant connection at the metric port. The NBR seal material provides compatibility with common hydraulic fluids across a broad service range. California residents should note that this product is subject to Proposition 65 requirements.

SKU: 7005-06-20-BS

Supplier Part Number (MPN): 7005-06-20-BS
