08MJ-20MM STRAIGHT. (20MMX1.50 THREAD)

Description & Features

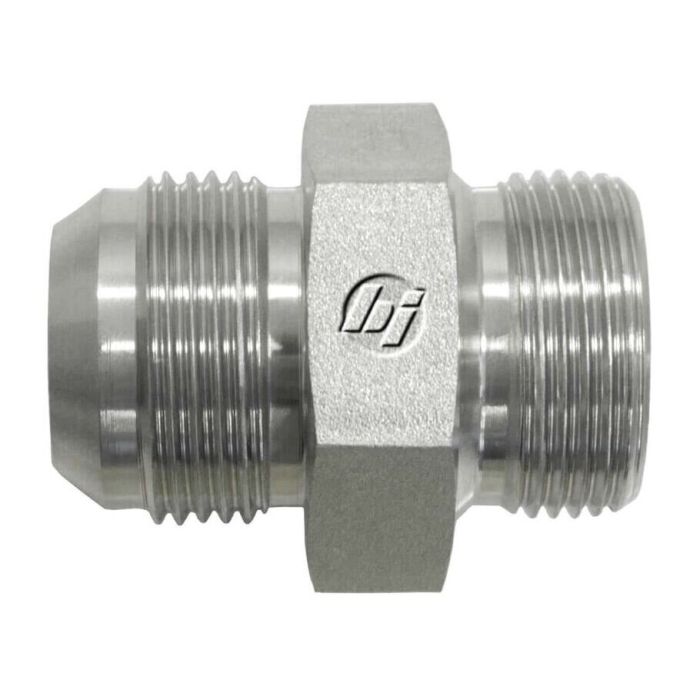

This straight steel fitting features a 3/4-16 Male JIC SAE 37 Degree Flare thread on one end and a M20X1.5 Male Metric thread on the other. The 08MJ-20MM STRAIGHT. (20MMX1.50 THREAD) is part of the 7005 series from Brennan Industries.

Thread Drill B1 is 9.9mm and Thread Drill B2 is 12.3mm. It conforms to SAE J514 and ISO 9974 thread specifications, offering reliable performance in demanding hydraulic applications.

SKU: 7005-08-20

Supplier Part Number (MPN): 7005-08-20

Specifications

Connection Size 1 1/2 in	Connection Size 2 20 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male Metric 60 deg Cone	Cubic Inch Space L x W x H Dimensions 1.496 cu-in	Dimension Standards SAE J514	Dimensions 37.7 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Series 7005 Series	Thread B1 Drill Dimensions 9.9 mm	Thread B2 Drill Dimensions 12.3 mm	Thread Size M20x1.5 x 3/4-16

Product Questions & Answers (1)

Question by: Jerry R on Dec 20, 2025, 8:16 PM

Is this fitting something I could use to adapt a metric port to a JIC connection?

Answer by: Customer Support on Dec 22, 2025, 7:39 AM

That fitting adapts a M20X1.5 male metric thread to a 3/4-16 Male JIC SAE 37 Degree Flare thread. So, yes, that's exactly what it's for.
