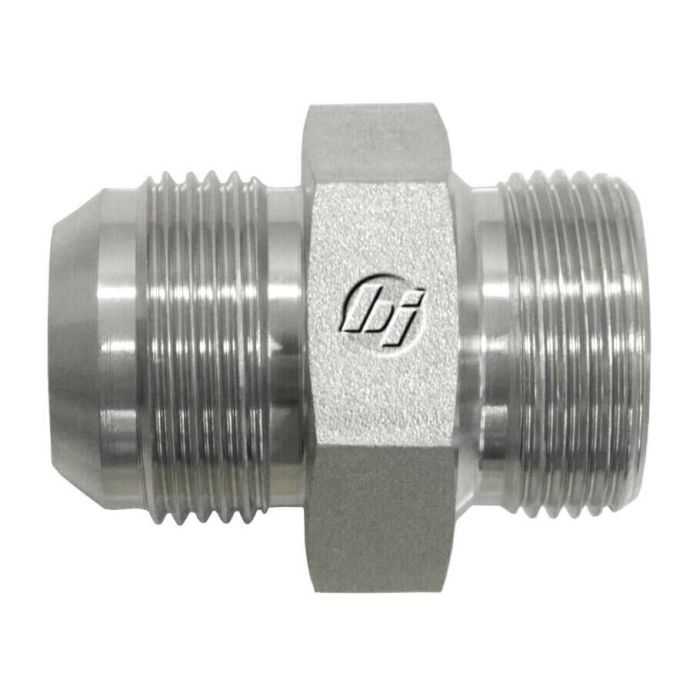

BRENNAN 8JIC X 22

Ask A Question

Description & Features

Constructed from high-quality straight steel, this hydraulic adapter is designed to ensure reliability and durability in demanding industrial environments. Featuring a male JIC SAE 37-degree flare connection on one end and a male metric M22x1.5 thread on the other, it offers seamless integration into diverse hydraulic systems. The BRENNAN 8JIC X 22 is engineered according to SAE J514 and ISO 9974 standards, ensuring compatibility and performance excellence.

Ideal for applications requiring precise thread alignment, this adapter supports a broad range of industrial uses. Its compact design, with a cubic inch space of 1.802, allows for easy installation and maintenance in tight spaces. The thread drill sizes of 9.9 mm and 12.3 mm further enhance its utility in various setups, making it a versatile component in hydraulic systems.

SKU: 7005-08-22

Supplier Part Number (MPN): 7005-08-22

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
22 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male Metric 60 deg Cone
Cubic Inch Space L x W x H Dimensions
1.802 cu-in
Dimension Standards
SAE J514
Dimensions
40.7 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
7005 Series
Thread B1 Drill Dimensions
9.9 mm
Thread B2 Drill Dimensions
12.3 mm
Thread Size
M22x1.5 x 3/4-16

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
04MJ-12MM STRAIGHT. (12MMX1.50 THREAD)

7005-04-12

1/4 in

12 mm

7/16-20 x M12x1.5

19 mm

04MJ-14MM STRAIGHT. (14MMX1.50 THREAD)

7005-04-14

1/4 in

14 mm

M14x1.5 x 7/16-20

19 mm

BRENNAN 6JICX14

7005-06-14

3/8 in

14 mm

9/16-18 x M14x1.5

19 mm

06MJ-16MM STRAIGHT (16MMX1.50 THREAD)

7005-06-16

3/8 in

S16

9/16-18 x M16x1.5

22 mm

06MJ-18MM STRAIGHT. (18MMX1.50 THREAD)

7005-06-18

3/8 in

18 mm

9/16-18 x M18x1.5

24 mm

-8MJIC X M12 X 1.5

7005-08-12

1/2 in

12 mm

3/4-16 x M12x1.5

22 mm

08MJ-14MM Straight. (14MMX1.50 Thread)

7005-08-14

1/2 in

14 mm

3/4-16 x M14x1.5

19 mm

08MJ-16MM STRAIGHT. (16MMX1.50 THREAD)

7005-08-16

1/2 in

S16

3/4-16 x M16x1.5

22 mm

BRENNAN 8JIC - 18

7005-08-18

1/2 in

18 mm

M18x1.5 x 3/4-16

24 mm

08MJ-20MM STRAIGHT. (20MMX1.50 THREAD)

7005-08-20

1/2 in

20 mm

M20x1.5 x 3/4-16

27 mm

Product Questions & Answers (1)

Question by: Lyle P on Sep 19, 2025, 9:27 AM
Reckon this adapter would hold up okay in a hydraulic system running, say, 2500 PSI? Just wanna make sure it's tough enough for the job.
Answer by: Customer Support on Sep 20, 2025, 1:18 PM
Constructed from straight steel, this adapter is designed for durability in demanding industrial environments. However, the product data doesn't specify a maximum pressure rating.
