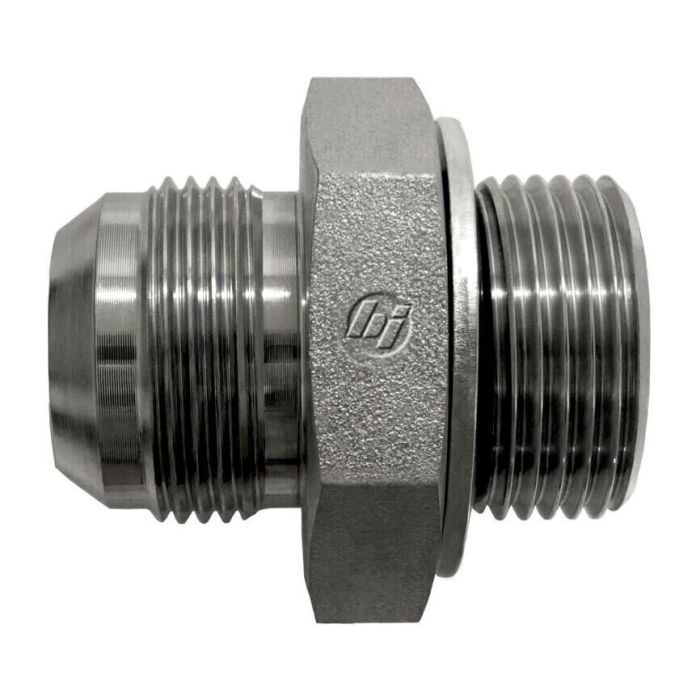

04MJ-02MBSPP STRAIGHT W/ORING RET RING

Description & Features

Crafted from robust straight steel, this fitting combines durability with precision engineering, making it ideal for demanding industrial applications. The 04MJ-02MBSPP STRAIGHT W/ORING RET RING is designed with a male JIC SAE 37-degree flare and a male BSPP ORR connection, ensuring secure and reliable joints in your hydraulic systems. Equipped with a high-quality NBR O-ring seal, this fitting provides excellent resistance to oil, heat, and wear.

With thread sizes of 7/16-20 and 1/8-28, this fitting meets SAE J514 specifications, ensuring compatibility with a wide range of equipment and systems. Brennan Industries, a trusted name in hydraulic components, brings you this fitting as part of their 7012-ORR series, ensuring quality and reliability in every piece. Ensure optimal performance and longevity in your machinery with this precisely engineered fitting.

SKU: 7012-04-02

Supplier Part Number (MPN): 7012-04-02

Specifications

Brand BRENNAN	Connection Size 1 1/4 in	Connection Size 2 1/8 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male BSPP O-ring	Dimension Standards SAE J514	Dimensions 1.11 in L	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 0.563 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series 7012-ORR Series	Thread Size 7/16-20 x 1/8-28

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
7012-04-04	1/4 in	1/4 in	7/16-20 x 1/4-19
7012-06-04	3/8 in	1/4 in	9/16-18 x 1/4-19
7012-06-06	3/8 in	3/8 in	9/16-18 x 3/8-19
7012-06-08	3/8 in	1/2 in	1/2-14 x 9/16-18
7012-08-04	1/2 in	1/4 in	3/4-16 x 1/4-19
7012-08-06	1/2 in	3/8 in	3/4-16, 3/8-19
7012-08-08	1/2 in	1/2 in	3/4-16 x 1/2-14
7012-08-12	1/2 in	3/4 in	3/4-16 x 3/4-14
7012-10-06	5/8 in	3/8 in	7/8-14 x 3/8-19
7012-10-08	5/8 in	1/2 in	1/2-14 x 7/8-14
7012-10-12	5/8 in	3/4 in	3/4-14, 7/8-14
7012-12-08	3/4 in	1/2 in	1-1/16-12 x 1/2-14
7012-12-12	3/4 in	3/4 in	1-1/16-12 x 3/4-14
7012-16-16	1 in	1 in	1-5/16-12 x 1-11
