04MJ-04MBSPP ORR Straight. ORing/Ret Rin

Description & Features

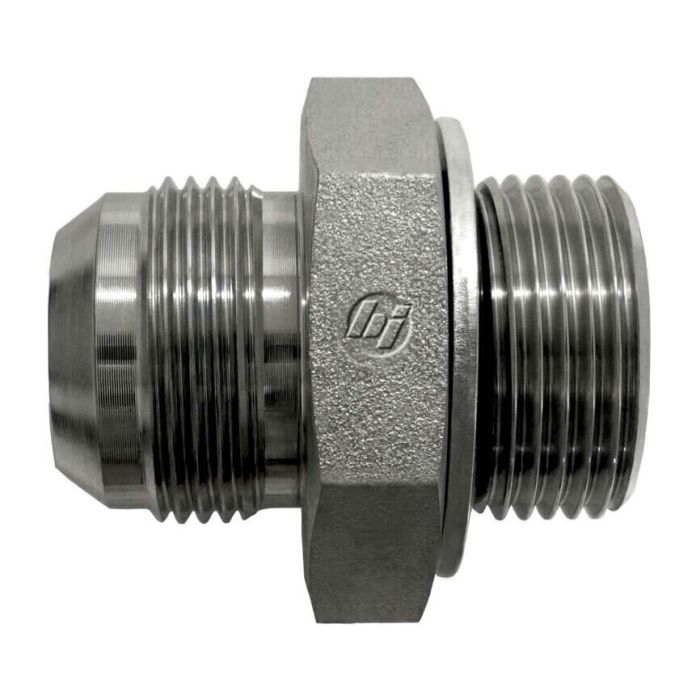

Designed for industrial applications, the 04MJ-04MBSPP ORR Straight connector combines robust construction with reliable performance. Crafted from high-grade straight steel, this fitting ensures durability and long-lasting use in demanding environments. It features a male JIC SAE 37-degree flare thread on one side and a male BSPP ORR thread on the other, allowing seamless integration into various hydraulic systems.

The 04MJ-04MBSPP ORR Straight connector includes an NBR O-ring seal, enhancing its leak-proof capabilities and ensuring secure connections under pressure. With thread sizes of 7/16-20 and 1/4-19, this connector adheres to the SAE J514 specification, making it compatible with standard industrial fittings. Its compact design, with a cubic inch space of 0.709, allows for efficient installation in confined spaces.

SKU: 7012-04-04

Supplier Part Number (MPN): 7012-04-04

Specifications

Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male BSPP O-ring	Dimension Standards SAE J514	Dimensions 1.27 in L	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 3/4 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Operating Temperature -40 to 250 deg F	Seam Material NBR	Series 7012-ORR Series	Thread Size 7/16-20 x 1/4-19

Product Questions & Answers (1)

Question by: Johnny M on Jun 8, 2025, 6:51 PM

Will this fitting work for connecting a hydraulic line to a pressure gauge?

Answer by: Customer Support on Jun 10, 2025, 6:10 AM

Designed for industrial applications, this ORR straight connector is suitable for connecting hydraulic lines where a tight, leak-proof seal is crucial, especially with its NBR O-ring.
