06MJ-06MBSPP ORR Straight. ORing/Ret Rin

Ask A Question

Description & Features

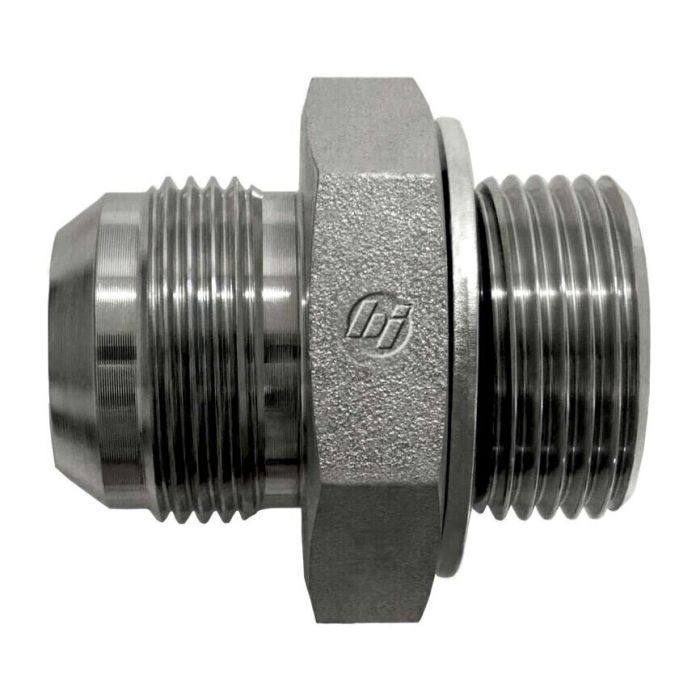

This straight fitting, part number 7012-06-06, features a male JIC SAE 37 degree flare connection on one end and a male BSPP ORR connection on the other. The 06MJ-06MBSPP ORR Straight. ORing/Ret Rin is manufactured from steel for durability in demanding hydraulic applications.

The NBR O-ring seal ensures a secure, leak-free connection. Thread sizes are 9/16-18 for the JIC side and 3/8-19 for the BSPP ORR side, with corresponding thread drill sizes of 7.54 mm and 9.9 mm respectively.

SKU: 7012-06-06

Supplier Part Number (MPN): 7012-06-06

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male BSPP O-ring
Cubic Inch Space L x W x H Dimensions
0.975 cu-in
Dimension Standards
SAE J514
Dimensions
33 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
O-ring Seal Material
NBR
Operating Temperature
-40 to 250 deg F
Series
7012-ORR Series
Thread B1 Drill Dimensions
7.54 mm
Thread B2 Drill Dimensions
9.9 mm
Thread Size
9/16-18 x 3/8-19

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Rex E on Dec 31, 2025, 12:27 PM
Just makin' sure, this here's got a JIC on one side and a BSPP on the other, right?
Answer by: Customer Support on Jan 1, 2026, 4:57 PM
That's correct. This straight fitting features a male JIC SAE 37 degree flare connection on one end and a male BSPP ORR connection on the other.
