8-8 F4OMXS

Description & Features

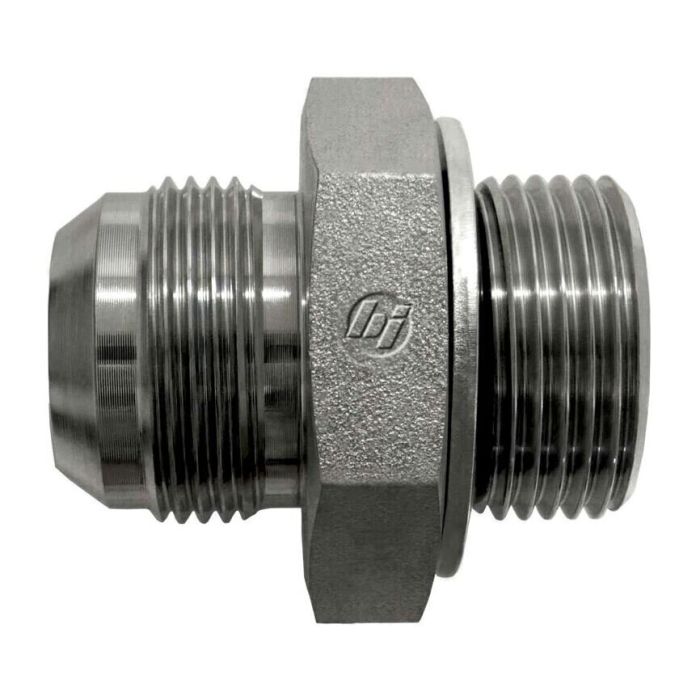

This straight steel fitting, the 8-8 F4OMXS, features a male JIC SAE 37-degree flare on one end and a male BSPP ORR connection on the other.

It is part of the 7012-ORR series and utilizes an NBR O-ring seal for a secure connection. The thread drill size for both connections is 9.93 mm.

SKU: 7012-08-08

Supplier Part Number (MPN): 7012-08-08

Alternate Part Numbers: 1046-1223

Specifications

Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male BSPP O-ring	Cubic Inch Space L x W x H Dimensions 1.824 cu-in	Dimension Standards SAE J514	Dimensions 41 mm L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	O-ring Seal Material NBR	Operating Temperature -40 to 250 deg F	Series 7012-ORR Series	Thread B1 Drill Dimensions 9.93 mm	Thread B2 Drill Dimensions 9.93 mm	Thread Size 3/4-16 x 1/2-14

Product Questions & Answers (1)

Question by: Bobby C on Dec 4, 2025, 4:34 PM

Just wanna make sure, will this fitting work with a standard JIC setup on one end and BSPP ORR on the other?

Answer by: Customer Support on Dec 6, 2025, 3:04 PM

Absolutely, this straight steel fitting (8-8 F4OMXS) has a male JIC SAE 37-degree flare on one side and a male BSPP ORR connection on the other, so it should do the trick.
