12MJ-08MBSPP ORR Straight. ORing/Ret Rin

Ask A Question

Description & Features

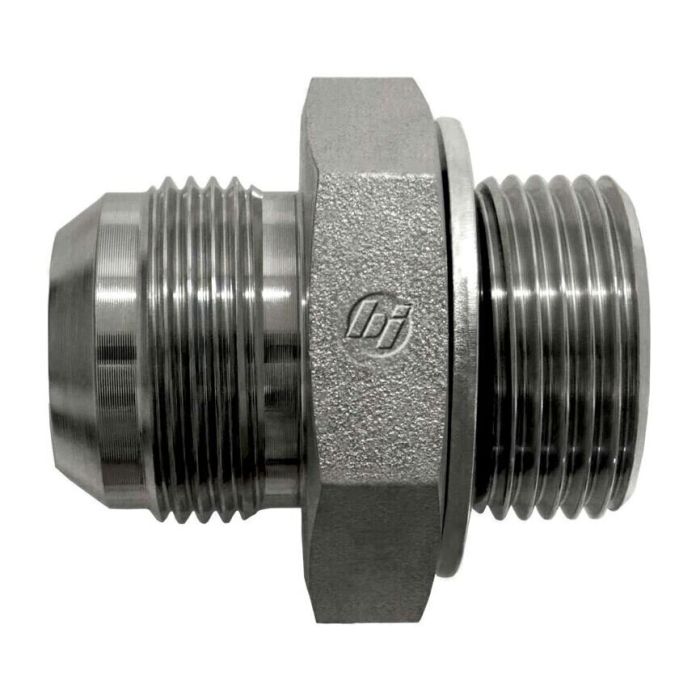

This straight steel fitting, part number 7012-12-08, features a 1-1/16-12 male JIC SAE 37 degree flare connection on one end and a 1/2-14 male BSPP ORR connection on the other.

The 12MJ-08MBSPP ORR Straight fitting uses a NBR O-ring seal, and the thread drill sizes are 15.47 mm and 12.7 mm.

SKU: 7012-12-08

Supplier Part Number (MPN): 7012-12-08

Specifications

Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male BSPP O-ring
Cubic Inch Space L x W x H Dimensions
2.548 cu-in
Dimension Standards
SAE J514
Dimensions
46.4 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
O-ring Seal Material
NBR
Operating Temperature
-40 to 250 deg F
Series
7012-ORR Series
Thread B1 Drill Dimensions
15.47 mm
Thread B2 Drill Dimensions
12.7 mm
Thread Size
1-1/16-12 x 1/2-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Dwight T on Mar 19, 2026, 7:55 AM
Is this fitting made of steel?
Answer by: Customer Support on Mar 20, 2026, 4:40 PM
Correct, this straight fitting is made of steel.
