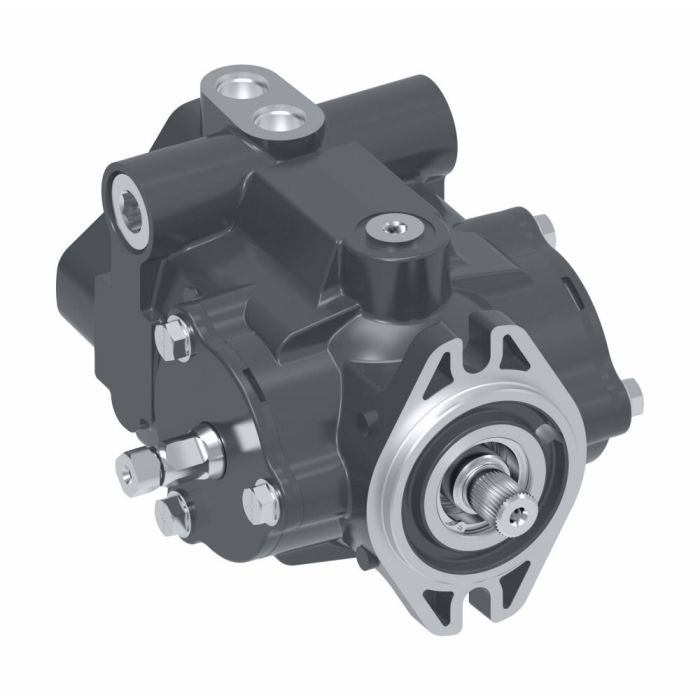

DANFOSS / EATON 1.44 CID MANUAL CONTROL

Description & Features

The DANFOSS / EATON 1.44 CID Manual Control is a versatile medium-duty closed circuit pump designed for demanding applications in industries such as mining, agriculture, and railroads. Its variable displacement feature allows for precise control, making it an excellent choice for machinery requiring reliable hydraulic power, including dump trucks and agricultural tractors. With displacements ranging from 20cc to 49cc (1.22 to 3.00 cu in), this pump provides flexibility to suit multiple operational needs.

Engineered for ease of use, the pump boasts an easy-to-operate sealed system, ensuring durability and minimizing maintenance demands in tough environments. Its construction supports mobile applications, particularly in CC piston pumps, enhancing its adaptability across various equipment. The integration of Char-Lynn technology further underscores its reliability and efficiency in hydraulic performance.

SKU: 70160-LAD-03

Supplier Part Number (MPN): 70160-LAD-03

Specifications

Brand Danfoss	Aux Mount and Output Shaft No Integral Charge: Horizontal/Vertical SAE J744 Flanged 82-2 (2 Bolt A) 9 Tooth External 16/32 Pitch Spline with 31.7 mm [1-1/4 in] Shaft Extension (Coupler Required)	Auxiliary Port Top-Rear C2 3/4-16 UNF-2B SAE O-ring Port	Code Title Medium Duty Manually Variable Displacement Axial Piston Pump with SAE J744 Flanged 82-2 (2 Bolt A)	Control Shaft Location Right Side	Control Type Manual	Design Code A	Dimensions 9.76 in L x 8.9 in W x 6.29 in H	Drive Shaft Type Splined	Fluid Compatibility Premium-Grade Anti-Wear Petroleum Based Hydraulic Fluid	Housing Color Red	Housing Material Aluminum	Inlet Type SAE ORB	Input Shaft Rotation Counterclockwise (Left-Hand)	Main Port Size A and B 1-1/16-12 Un-2B SAE O-ring Ports	Maximum Operating Pressure 3000 psi	Mounting Type 2-Bolt Flanged	Outlet Type SAE ORB	Relief Valve Set Main Port A Rvs A, 3000 psi	Rotation Direction Counter Clockwise (Left Hand)	Seal Material Fluorocarbon	Series 70160 Series	Valve Plate Valve Plate - Type 1

Product Questions & Answers (1)

Question by: Larry H on Jul 31, 2025, 8:20 AM

How hard would this be to hook up to a dump truck for lifting?

Answer by: Customer Support on Aug 1, 2025, 6:52 PM

This manual control unit is indeed used in dump truck lift applications, and it’s designed to be easy to operate in a sealed system, so you shouldn't have problems in that environment.
