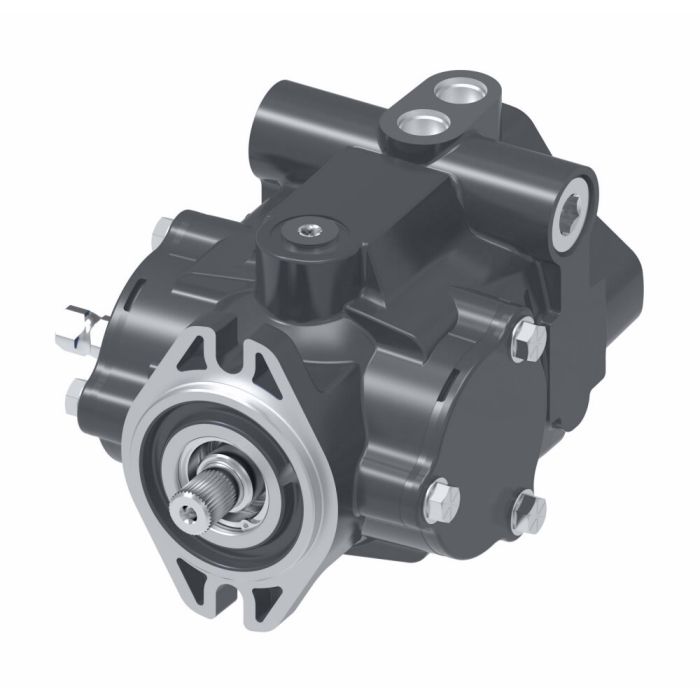

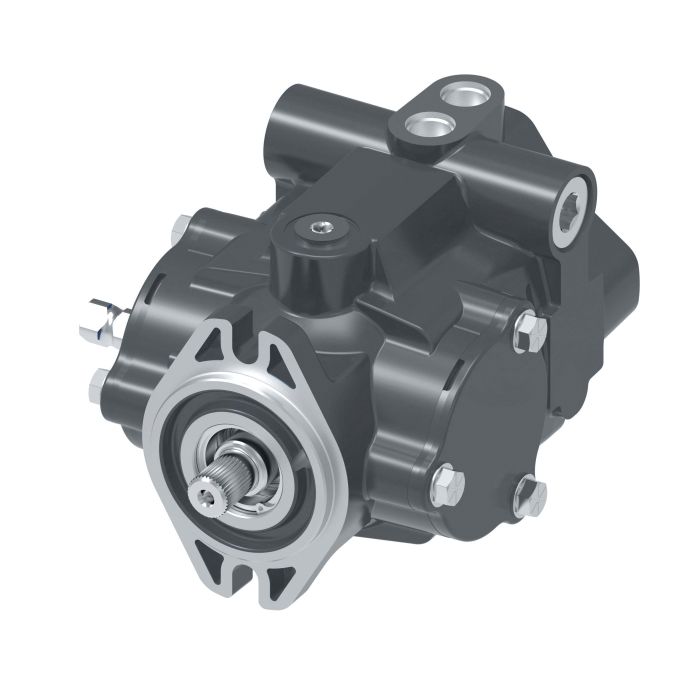

main product photo

Danfoss / Eaton-1.44 MD MAN VAR DIS AXLPiston Pump

Ask A Question

Description & Features

Designed for medium-duty closed-circuit hydraulic systems, the Danfoss / Eaton-1.44 MD MAN VAR DIS AXL Piston Pump is a variable displacement axial piston pump with a displacement range of 20cc to 49cc (1.22 to 3.00 cu in). Manual control allows straightforward displacement adjustment, and the sealed system design supports reliable performance across demanding mobile equipment environments.

Suited for a broad range of mobile applications, including mining machinery, dump truck lift systems, agricultural tractors, and railroad equipment, this pump offers the flexibility to integrate into varied hydraulic circuits. As part of the Danfoss Power Solutions medium-duty closed-circuit lineup, it balances compact configuration with a meaningful displacement range for variable-demand work cycles.

SKU: 70160-LDB-03

Supplier Part Number (MPN): 70160-LDB-03

Specifications

Brand
Danfoss
Aux Mount and Output Shaft
With Integral Charge: Horizontal SAE J744 Flanged 82-2 and Output Shaft (2 Bolt A), 9 Tooth Internal 16/32 Pitch Spline with 31.7 mm [1-1/4 in] Shaft Extension
Aux Port Top Front C1 Or Bpv
3/4-16 UNF-2B SAE O-ring Port Plugged
Charge Disp and Suction Port S
6.9 cc/rev [0.42 cu-in/rev], (3/4-16 UNF-2B SAE O-ring Port For Suction Inlet - Right Side CCW, Left Side Cw)
Control Shaft
With Keyway 4.78 mm x 16.3 mm [0.188 in x 0.64 in], Arm Dia 19 mm [0.748 in] (Square Key Included), 113 mm [4.45 in] From Unit Centerline to Controlshaft End
Control Type
Manual
Cprv Setting and Routing
6.89 to 10.34 bar [100 to 150 lbf/sq-in] Relieved to Case
Design Code
B
Dimensions
10.08 in L x 8.9 in W x 6.29 in H
Drive Shaft Type
Keyed
Fluid Compatibility
Premium-Grade Anti-Wear Petroleum Based Hydraulic Fluid
Housing Color
Black
Housing Material
Aluminum
Inlet Type
SAE ORB
Main Port Location A and B
Opposite Sides
Maximum Operating Pressure
4000 psi
Mounting Type
2-Bolt Flanged
Outlet Type
SAE ORB
Relief Valve Set Main Port B
Rvs B, 4000 psi (275.8 bar)
Rotation Direction
Counter Clockwise (Left Hand)
Seal Material
Fluorocarbon
Series
70160 Series
Valve Plate
Valve Plate - Type 2

Product Questions & Answers (1)

Question by: Rod G on Sep 28, 2025, 8:33 PM
How hard is it to adjust the displacement on this thing?
Answer by: Customer Support on Sep 30, 2025, 11:03 AM
Manual control makes displacement adjustment straightforward. The pump allows you to vary displacement from 20cc to 49cc (1.22 to 3.00 cu in).
