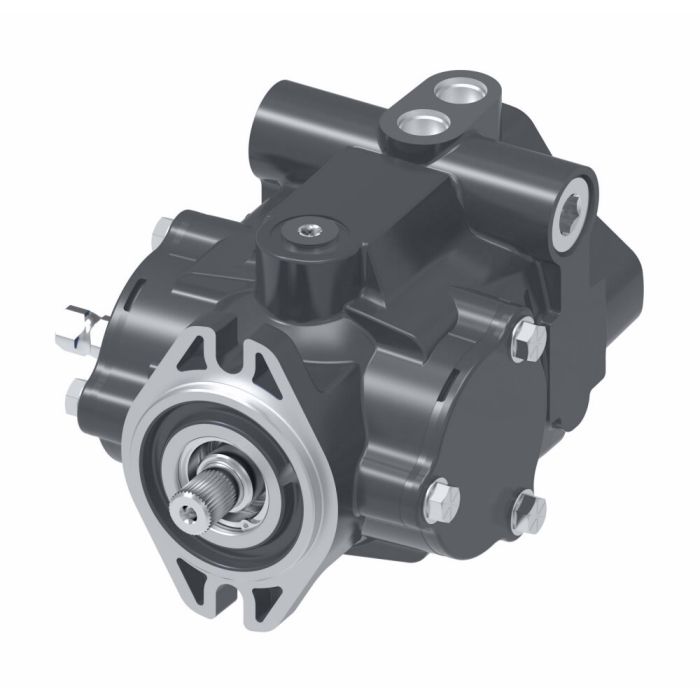

DANFOSS / EATON 1.24 MANUAL PUMP (160)

Description & Features

The DANFOSS / EATON 1.24 MANUAL PUMP (160) is a web-item suitable for mobile applications, specifically within mobile CC piston pumps.

This Char-Lynn pump is identified by supplier part number 70160-RIU-03.

SKU: 70160-RIU-03

Supplier Part Number (MPN): 70160-RIU-03

Brand Danfoss	Aux Mount and Output Shaft With Integral Charge: Horizontal SAE J744 Flanged 82-2 and Output Shaft (2 Bolt A), 9 Tooth Internal 16/32 Pitch Spline with 31.7 mm [1-1/4 in] Shaft Extension	Case Drain D1 and D2 3/4-16 UNF-2B SAE O-ring Port D1-Top (D2-Bottom Plugged)	Code Title Medium Duty Manually Variable Displacement Axial Piston Pump with SAE J744 Flanged 82-2 (2 Bolt A)	Control Shaft Location Left Side	Control Type Manual	Design Code A	Dimensions 8.46 in L x 6.53 in W x 6.27 in H	Drive Shaft Type Splined	Fluid Compatibility Premium-Grade Anti-Wear Petroleum Based Hydraulic Fluid	Housing Color Red	Housing Material Aluminum	Inlet Type SAE ORB	Input Shaft Rotation Clockwise (Right-Hand)	Main Port Size A and B 1-1/16-12 Un-2B SAE O-ring Ports	Maximum Operating Pressure 3000 psi	Mounting Type 2-Bolt Flanged	Outlet Type SAE ORB	Relief Valve Set Main Port A Rvs A, 3000 psi	Rotation Direction Clockwise (Right Hand)	Seal Material Fluorocarbon	Series 70160 Series	Valve Plate Valve Plate - Type 1

Question by: Harold C on Dec 28, 2025, 2:23 PM

Will this manual pump work for a mobile application like on a truck or tractor?

Answer by: Customer Support on Dec 30, 2025, 8:21 AM

Absolutely, this Danfoss/Eaton 1.24 manual pump is designed for mobile applications, particularly within mobile CC piston pumps.
