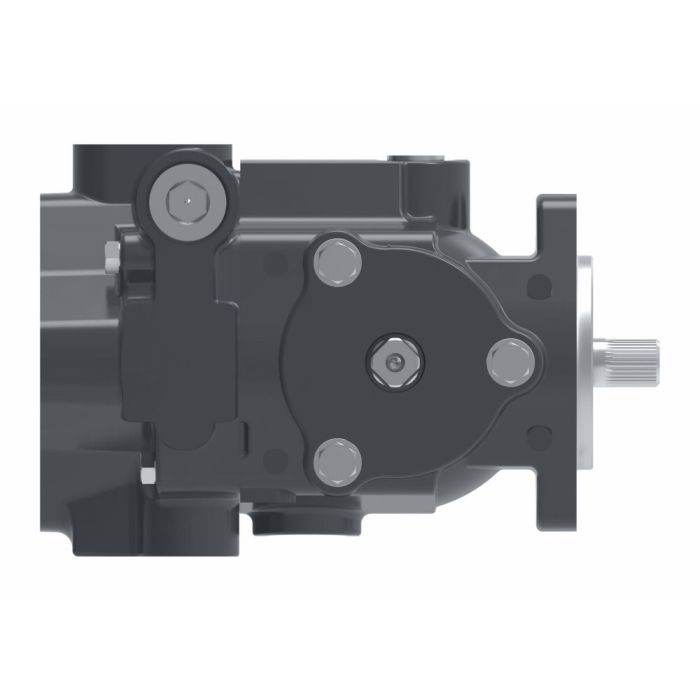

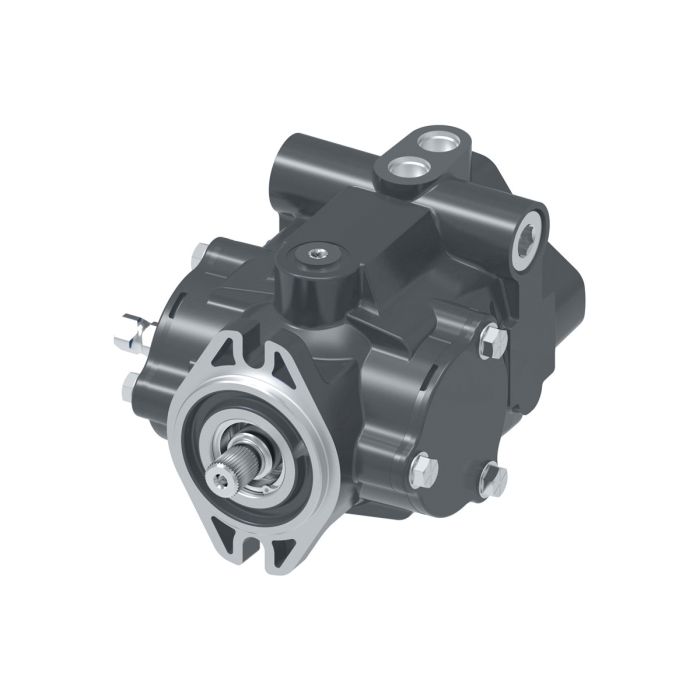

Danfoss / Eaton-1.24 MD MAN VAR DIS AXPiston Pump

Description & Features

This Danfoss / Eaton-1.24 MD MAN VAR DIS AXPiston Pump is a variable displacement pump suitable for mobile closed circuit applications. It offers flexible application possibilities with displacements from 20cc to 49cc (1.22 to 3.00 cu in).

Applications include mining machinery, dump truck lifts, agricultural tractors, and railroad equipment. This pump features an easy-to-operate sealed system.

SKU: 70160-RRE-03

Supplier Part Number (MPN): 70160-RRE-03

Specifications

Brand Danfoss	Aux Mount and Output Shaft No Integral Charge: Horizontal/Vertical SAE J744 Flanged 82-2 (2 Bolt A) 35 Tooth External 48/96 Pitch Spline with 32 mm [1.26 in] Shaft Extension (Coupler Required)	Auxiliary Port Top-Rear C2 3/4-16 UNF-2B SAE O-ring Port	Code Title Medium Duty Manually Variable Displacement Axial Piston Pump with SAE J744 Flanged 82-2 (2 Bolt A)	Control Shaft Location Right Side	Control Type Manual	Design Code A	Dimensions 9.76 in L x 8.9 in W x 6.29 in H	Drive Shaft Type Splined	Fluid Compatibility Premium-Grade Anti-Wear Petroleum Based Hydraulic Fluid	Housing Color Red	Housing Material Aluminum	Inlet Type SAE ORB	Main Port Location A and B Opposite Sides	Maximum Operating Pressure 3500 psi	Mounting Type 2-Bolt Flanged	Outlet Type SAE ORB	Relief Valve Set Main Port B Rvs B, 3500 psi (241.3 bar)	Rotation Direction Clockwise (Right Hand)	Seal Material Fluorocarbon	Series 70160 Series	Valve Plate Valve Plate - Type 2

Product Questions & Answers (1)

Question by: Earl C on Jun 26, 2025, 2:41 PM

So, this pump is variable displacement? What does that really mean for how I'd use it?

Answer by: Customer Support on Jun 27, 2025, 6:22 PM

Variable displacement means the pump can adjust the amount of fluid it moves with each stroke. This allows it to adapt to varying demands in the system, which can be useful in applications needing different speeds or power levels.
