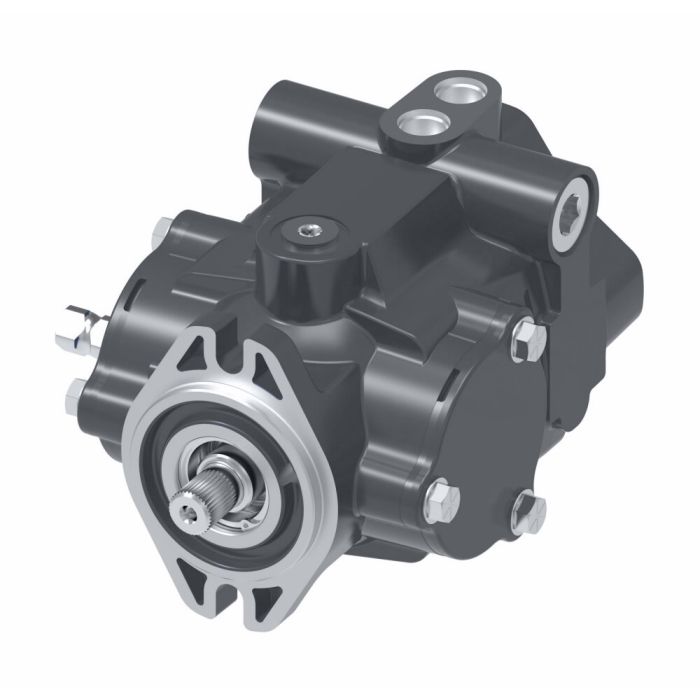

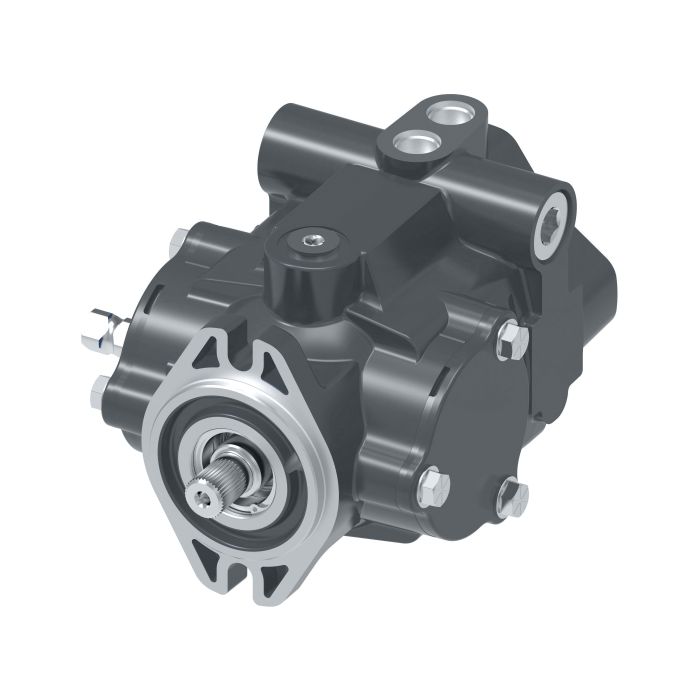

DANFOSS / EATON VICKERS 1.44 CID PUMP ASSY

Ask A Question

Description & Features

The Danfoss / Eaton Vickers 1.44 CID Pump Assembly is engineered for versatility and efficiency across a variety of demanding applications. Ideal for use in mining machinery, dump truck lifts, agricultural tractors, and railroad equipment, this pump offers reliable performance in heavy-duty environments. Its variable displacement design allows for precise control, making it adaptable to different operational requirements.

This pump features a compact build with a displacement range of 20cc to 49cc (1.22 to 3.00 cu in), ensuring flexibility for multiple applications. The easy-to-operate sealed system enhances user convenience and reduces the risk of contamination, prolonging the lifespan of the pump. Manufactured under the Vickers brand, this product maintains high standards of quality and durability.

SKU: 70160-RUK-03

Supplier Part Number (MPN): 70160-RUK-03

Specifications

Brand
Danfoss
Auxiliary Port Top-Rear C2
0.750-16 UNF-2B SAE O-ring Port Plugged
Case Drain D1 and D2
0.750-16 UNF-2B SAE O-ring Port D1-Top (D2-Bottom Plugged)
Charge Disp and Suction Port S
6.9 cc/rev
Control Shaft
With Keyway 4.78 x 16.3 in, Arm Diameter 19 .748 in (Square Key Included), 113 from Unit Centerline to Control Shaft End
Control Type
Manual
Cooling Method
Heat Exchanger
CPRV Setting Routing
6.89 to 10.34 bar Relieved to Case
Design Code
C
Dimensions
9.95 in L x 6.53 in W x 6.53 in H
Drive Shaft Type
Straight Keyed
Housing Color
Black
Housing Material
Aluminum
Inlet Size
1-1/16-12
Inlet Type
SAE ORB
Input Shaft
Straight, 22.212 Dia, 6.35 W x 25.9 L Key (Key Included), 41.3 Shaft Extension
Main Port Location A and B
Opposite Sides
Main Port Size A and B
1-1/16-12 UN-2B SAE O-ring Port
Mounting Type
SAE A 2-Bolt Flange
Outlet Size
1-1/16-12
Outlet Type
SAE ORB
Rotation Direction
Clockwise
Seal Material
FKM
Series
70160 Series
Valve Plate
Type 7

Product Questions & Answers (3)

Question by: Duane H on Jun 13, 2025, 9:38 PM
What kind of equipment does this pump work with? I'm seeing a few different things listed.
Answer by: Customer Support on Jun 15, 2025, 7:35 AM
It's applicable to mining machinery, dump truck lifts, agricultural tractors, and railroad equipment.
Question by: Ricky T on May 27, 2025, 6:49 PM
pump says 1.44 CID but the description mentions a range up to 3.00 cu in, which one is it actually set at from the factory?
Answer by: Customer Support on May 29, 2025, 2:14 PM
The 1.44 CID figure refers to the specific displacement this unit ships at, but it's a variable displacement pump, so it can operate anywhere in a range from 1.22 to 3.00 cu in (20cc to 49cc). That adjustable range is what makes it useful across different applications and load demands rather than being locked into a single fixed output.
Question by: Kurt B on Nov 7, 2025, 11:05 AM
got a dump truck lift that’s been picky about pumps. what kind of work is this 1.44 CID pump assy meant for?
Answer by: Customer Support on Nov 9, 2025, 7:57 AM
For real-world equipment, it’s commonly used on mining machinery, dump truck lift systems, agricultural tractors, and railroad equipment where you need dependable hydraulic power in a heavy-duty setting.
