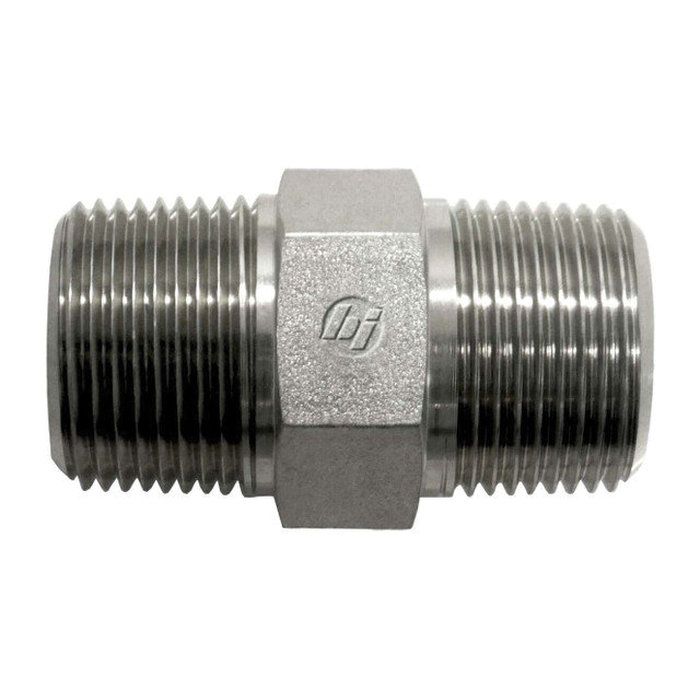

06MP-06MBSPT STRAIGHT HEX NIPPLE

Ask A Question

Description & Features

Designed to connect Male NPT and Male BSPT (R) threaded ports in a single inline fitting, the 06MP-06MBSPT Straight Hex Nipple provides a reliable solution for joining systems where thread standards differ. Both ends are 3/8 in. nominal size, one conforming to ANSI B1.20.1 (3/8-18 NPT) and the other to ISO 7-1 (3/8-19 BSPT), making this fitting particularly useful in equipment where North American and international thread standards meet.

Manufactured from straight steel by Brennan Industries, the fitting features a hex body for secure wrench engagement during installation. The Brennan 7030 Series is built for industrial hydraulic and fluid conveyance applications where thread compatibility and material durability are essential considerations. California residents should note that this product is subject to Proposition 65 warnings.

SKU: 7030-06-06

Supplier Part Number (MPN): 7030-06-06

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male BSP, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male BSPT
Cubic Inch Space L x W x H Dimensions
0.881 cu-in
Dimension Standards
SAE J476
Dimensions
35.8 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Hex Size
19 mm
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
7030 Series
Thread B1 Drill Dimensions
10.3 mm
Thread B2 Drill Dimensions
10.3 mm
Thread Size
3/8-19 x 3/8-18

Product Questions & Answers (1)

Question by: Ralph F on Feb 17, 2026, 10:51 AM
Will this thing work to connect a 3/8 NPT to a 3/8 BSPT line? Just wanna make sure before I order it.
Answer by: Customer Support on Feb 18, 2026, 12:32 PM
Yes, that's exactly what it's for. This straight hex nipple is designed to connect a 3/8-18 NPT male end to a 3/8-19 BSPT (R) male end.
