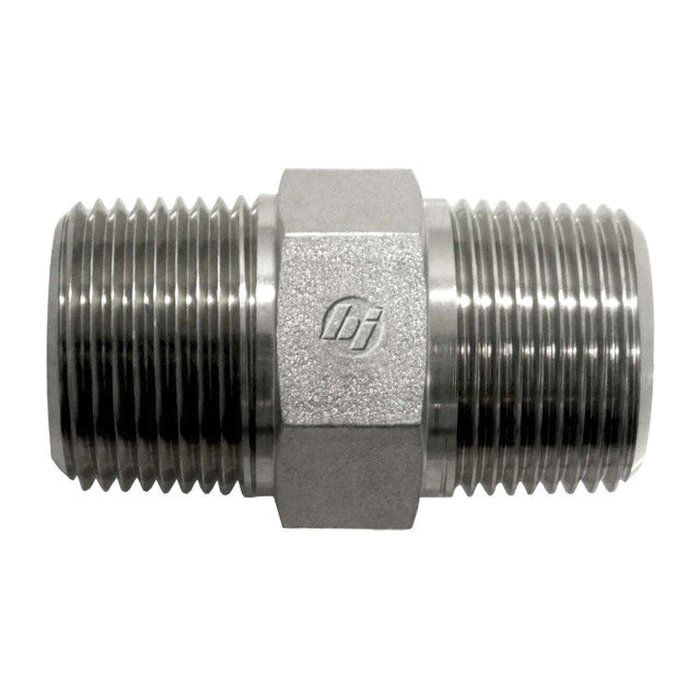

main product photo

ADPTR, STR 20 MBSPT X 20 MNPT

Ask A Question

Description & Features

This straight steel adapter features a 1-1/4-11 Male NPT thread and a 1-1/4-11-1/2 Male BSPT (R) thread. The ADPTR, STR 20 MBSPT X 20 MNPT is part of the 7030 series from Brennan Industries.

This adapter conforms to ANSI B1.20.1 and ISO 7-1 thread specifications. Thread drill B1 and B2 measure 31.7 mm each.

SKU: 7030-20-20

Supplier Part Number (MPN): 7030-20-20

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Male BSP, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male BSPT
Cubic Inch Space L x W x H Dimensions
9.098 cu-in
Dimension Standards
SAE J476
Dimensions
61.9 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Series
7030 Series
Thread B1 Drill Dimensions
31.7 mm
Thread B2 Drill Dimensions
31.7 mm
Thread Size
1-1/4-11-1/2 x 1-1/4-11

Product Questions & Answers (1)

Question by: Cindy J on Jun 10, 2025, 9:11 AM
Will this here adapter work with standard NPT fittings?
Answer by: Customer Support on Jun 12, 2025, 6:09 AM
Yes, this adapter features a 1-1/4-11 Male NPT thread, conforming to ANSI B1.20.1 thread specifications.
