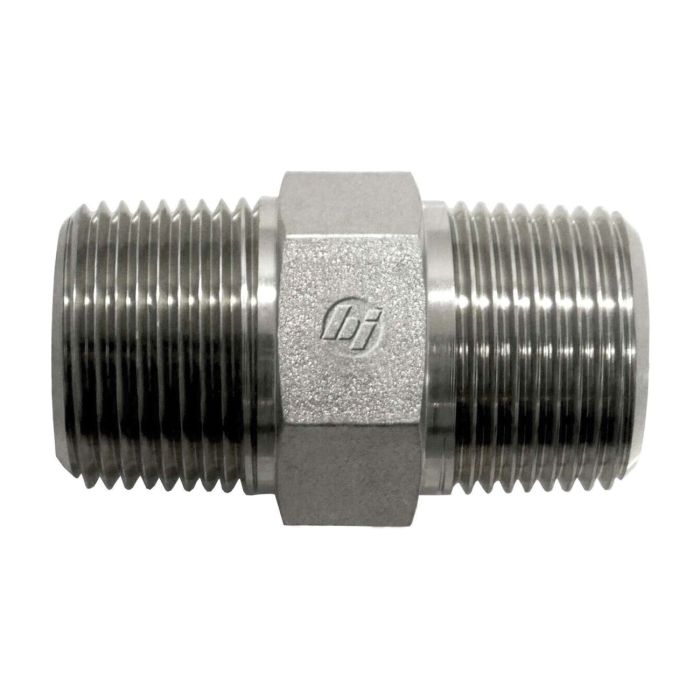

main product photo

BRENNAN 7030-32-32

Ask A Question

Description & Features

A steel straight hex nipple designed to connect Male NPT and Male Bspt (R) threaded circuits in a single inline fitting, the Brennan 7030-32-32 is built for applications where two different thread standards meet at a common junction. Thread end B1 follows Ansi B1.20.1 at 2-11½ NPT, while thread end B2 conforms to Iso 7-1 at 2-11 Bspt, making this fitting well suited for cross-standard hydraulic and industrial fluid connections.

Constructed from straight steel, the fitting offers the structural integrity expected in demanding industrial environments. The hex body provides a secure wrench grip during installation and removal. With drill dimensions of 49.0 mm on the NPT end and 45.0 mm on the Bspt end, this is a large-bore fitting appropriate for high-flow, heavy-duty circuit applications. California residents should note that this product is subject to Proposition 65 requirements.

SKU: 7030-32-32

Supplier Part Number (MPN): 7030-32-32

Alternate Part Numbers: FMC103-2070

Specifications

Brand
BRENNAN
Connection Size 1
2 in
Connection Size 2
2 in
Connection Type
Male BSP, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male BSPT
Dimension Standards
ANSI B1.20.1, ISO 7-1, SAE J476
Dimensions
2.87 in L
Finish
Zinc Trivalent
Fitting Type
Nipple
Hex Size
2-3/4 in
Material
Steel
Material Construction
12L14/C1045 Steel
Series
7030 Series
Thread B1 Drill Dimensions
49 mm
Thread B2 Drill Dimensions
45 mm
Thread Size
2-11 x 2-11-1/2

Product Questions & Answers (1)

Question by: Warren M on Oct 24, 2025, 3:27 PM
Just want to make sure, this fitting has two different thread types on it right? NPT on one side, Bspt on the other?
Answer by: Customer Support on Oct 25, 2025, 5:27 PM
Yes, that's correct. This Brennan fitting is designed with Male NPT threads on one end and Male Bspt (R) threads on the other, allowing connection between the two different thread standard types.
